Scribemaster - Surfacing Jig

Scribemaster - Surfacing Jig

Regular price £91.99 GBP
Regular price £0.00 GBP Sale price £91.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:SMJIG

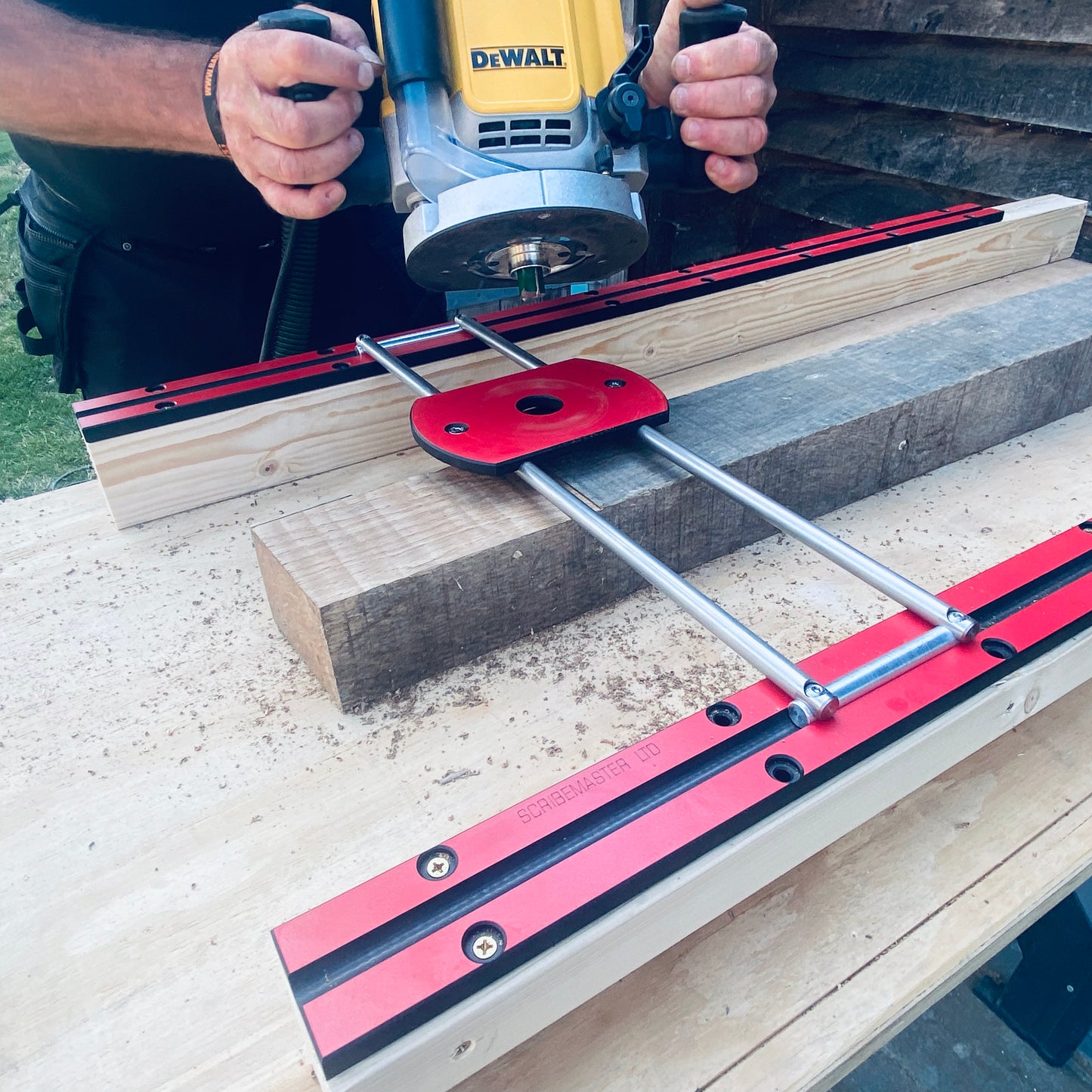

Adaptable compact jig for flattening, surfacing and trenching work on wide or irregular shaped material

  • IDEAL FOR WIDER MATERIALS Surfaces and flattens stock up to 400mm wide

  • END GRAIN ROUTING Routing cut across the surface of end grain for clean finish

  • CONTROLLED CUTTING Depth of cut can be easily controlled with the router plunge for fine skimming cuts or deeper levelling cuts

  • BI-DIRECTIONAL CUTTING Can be used across or along the grain

  • HPL MATERIAL High Pressure Laminate running rails and router cradle for wear-free performance, accuracy and durability

  • TWIN 12MM STAINLESS STEEL RAILS Supports heavier routers up to 7Kg weight without distortion

  • FIXED POSITION CRADLE Cradle can be locked to the bars for single axis movement such as trenching cuts

  • NO FIXED SUB BASE REQUIRED Simple guide bush location cradle for fast set up and removal

  • 30MM GUIDE BUSH CONNECTION Links to the cradle with 30mm guide bush for compatibility with multiple brands and router sizes

  • EXTENDABLE DESIGN Additional running rails can be added for longer sleds

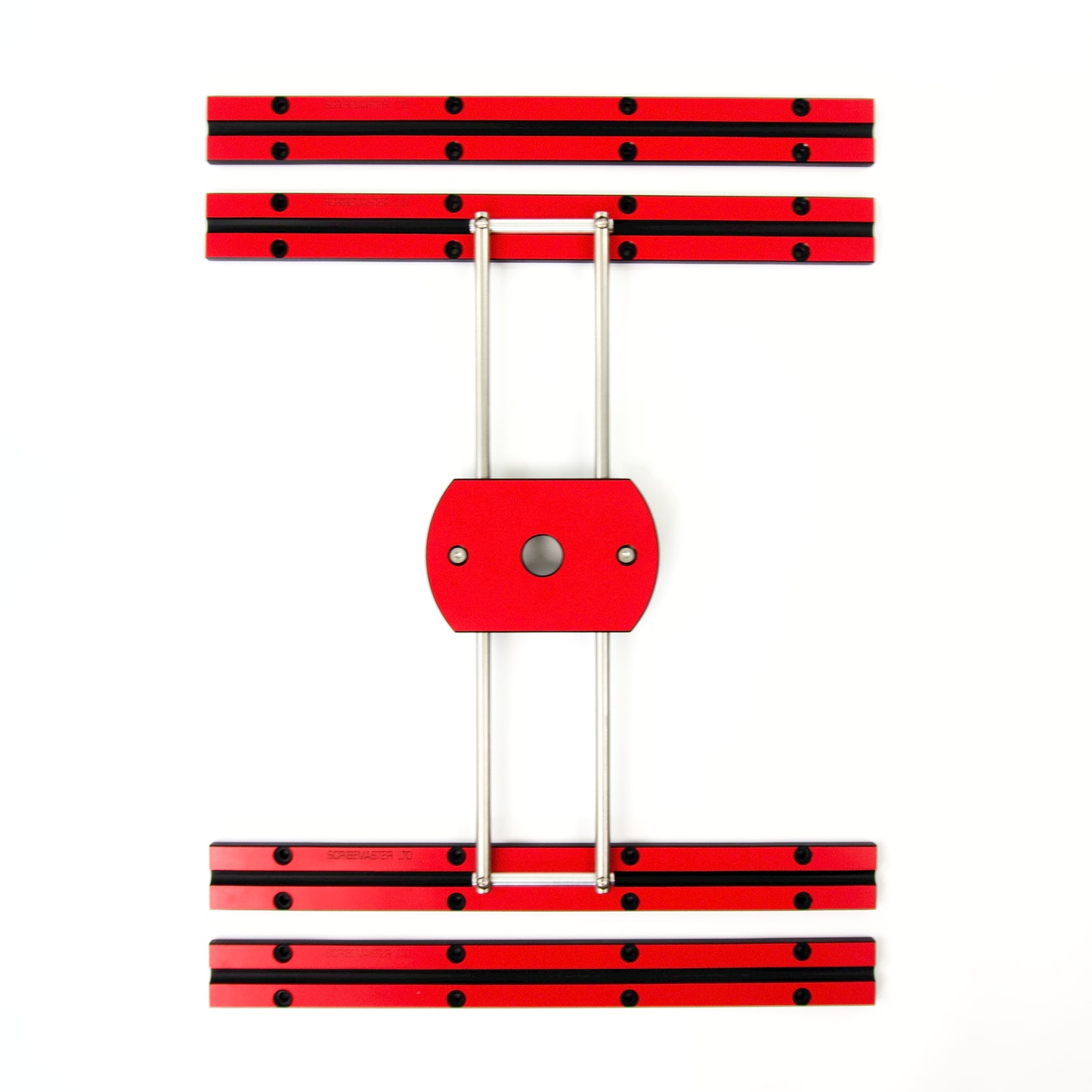

  • SLIM MODULAR DESIGN Easily stores away saving workshop space

Specifications

Rails
Length - 511 mm
Width - 50 mm
Thickness - 12 mm
Steel bars
Length - 511mm
Thickness - 12mm
Router base plate bore - 30 mm
Max. router weight - 7 kg
