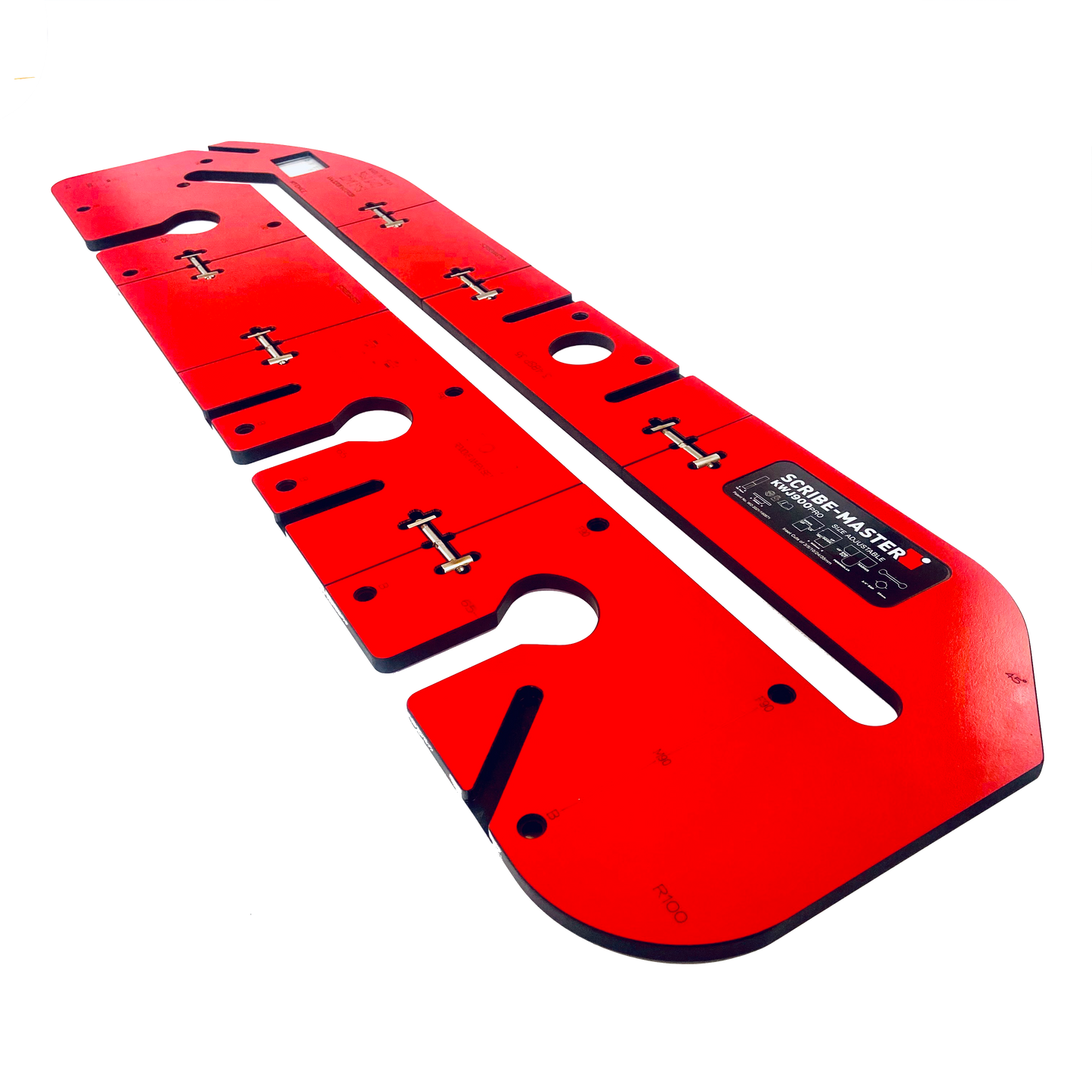

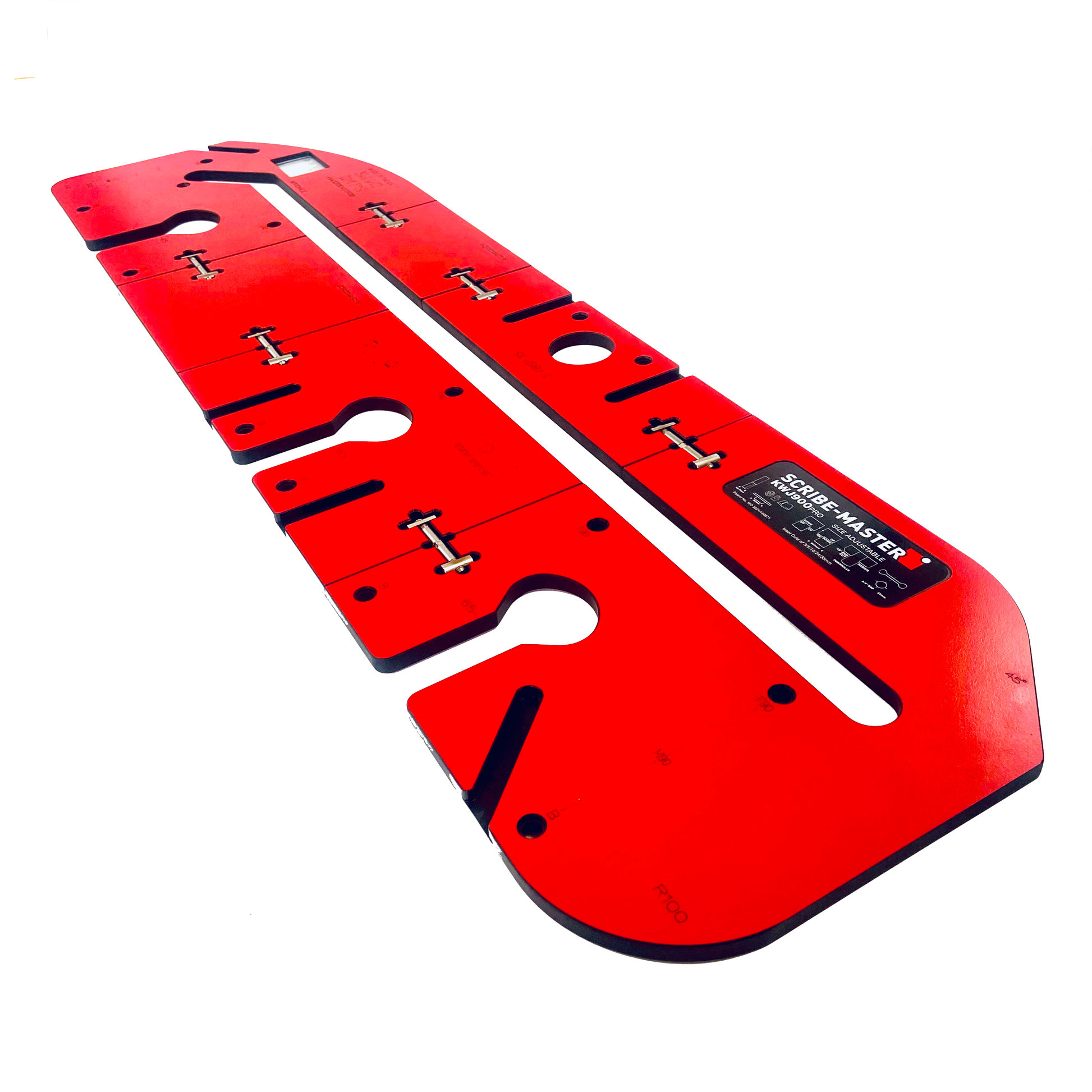

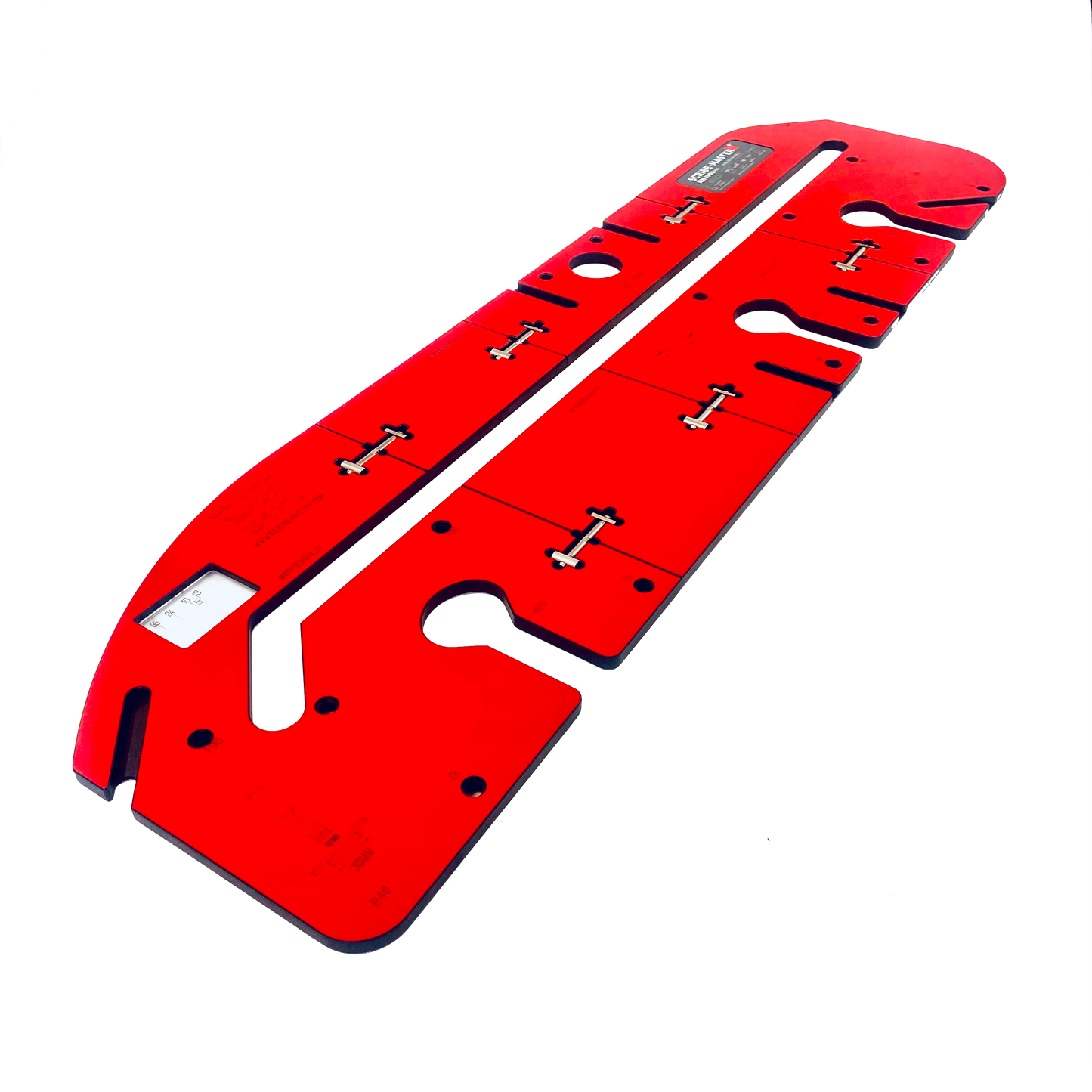

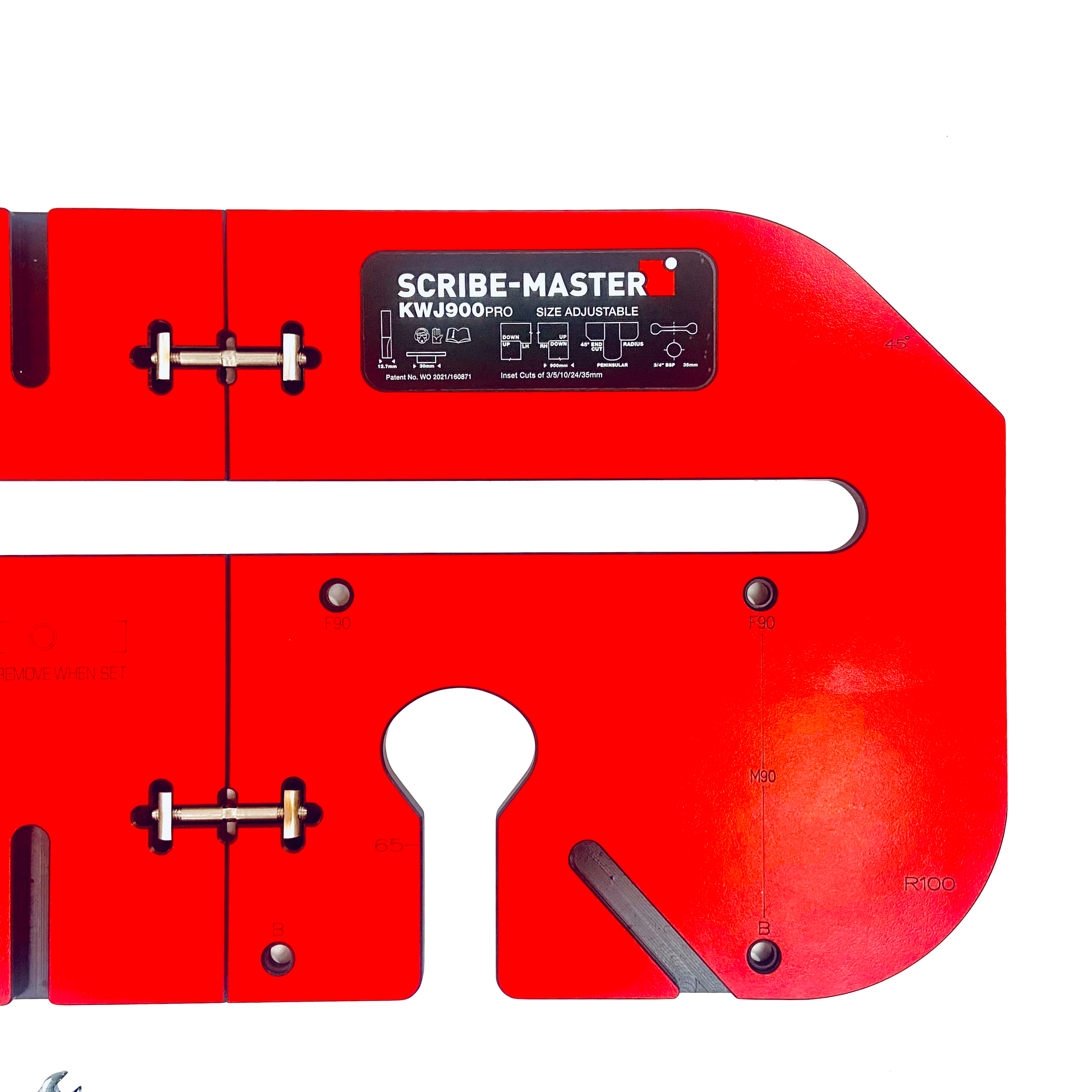

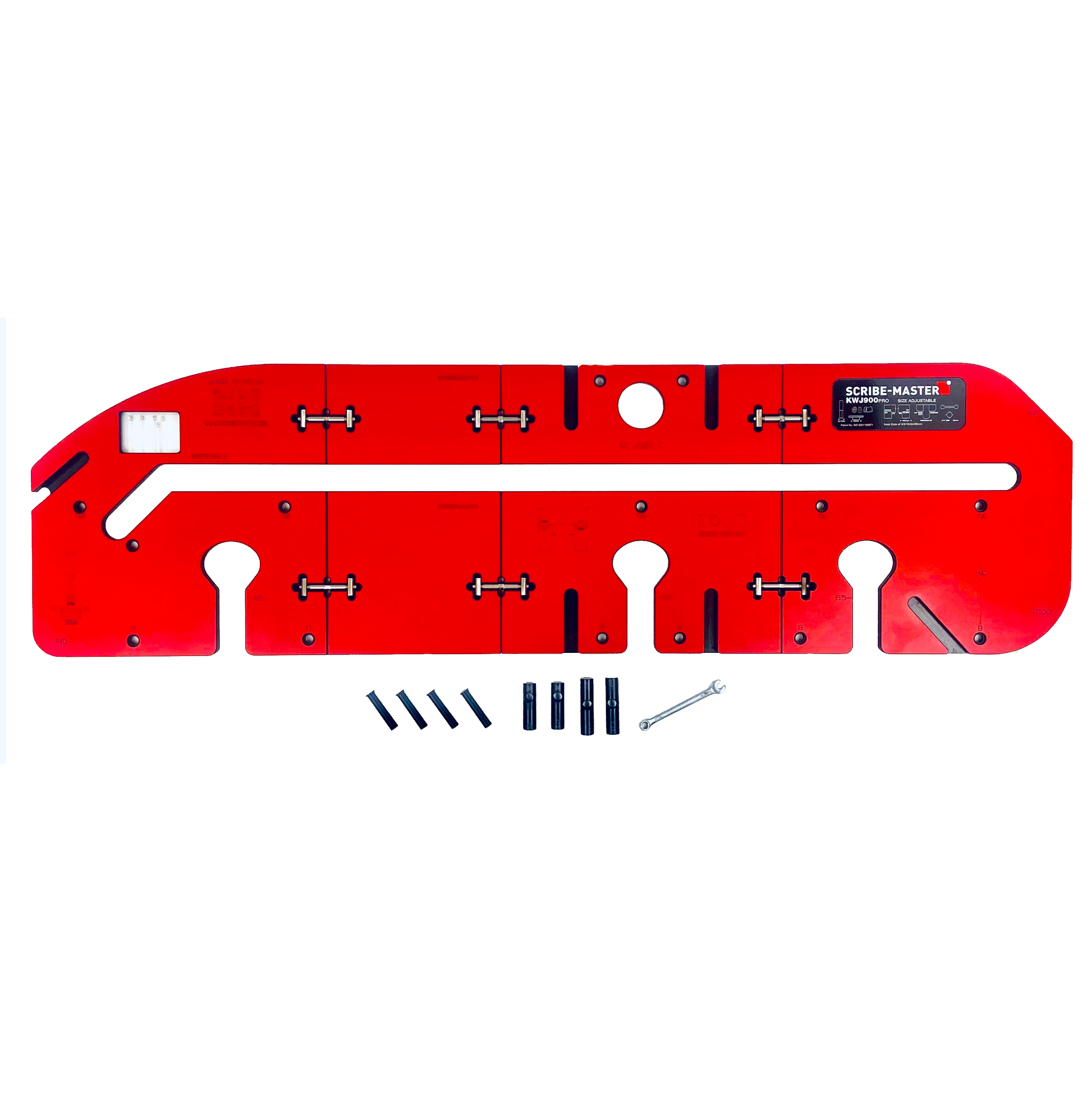

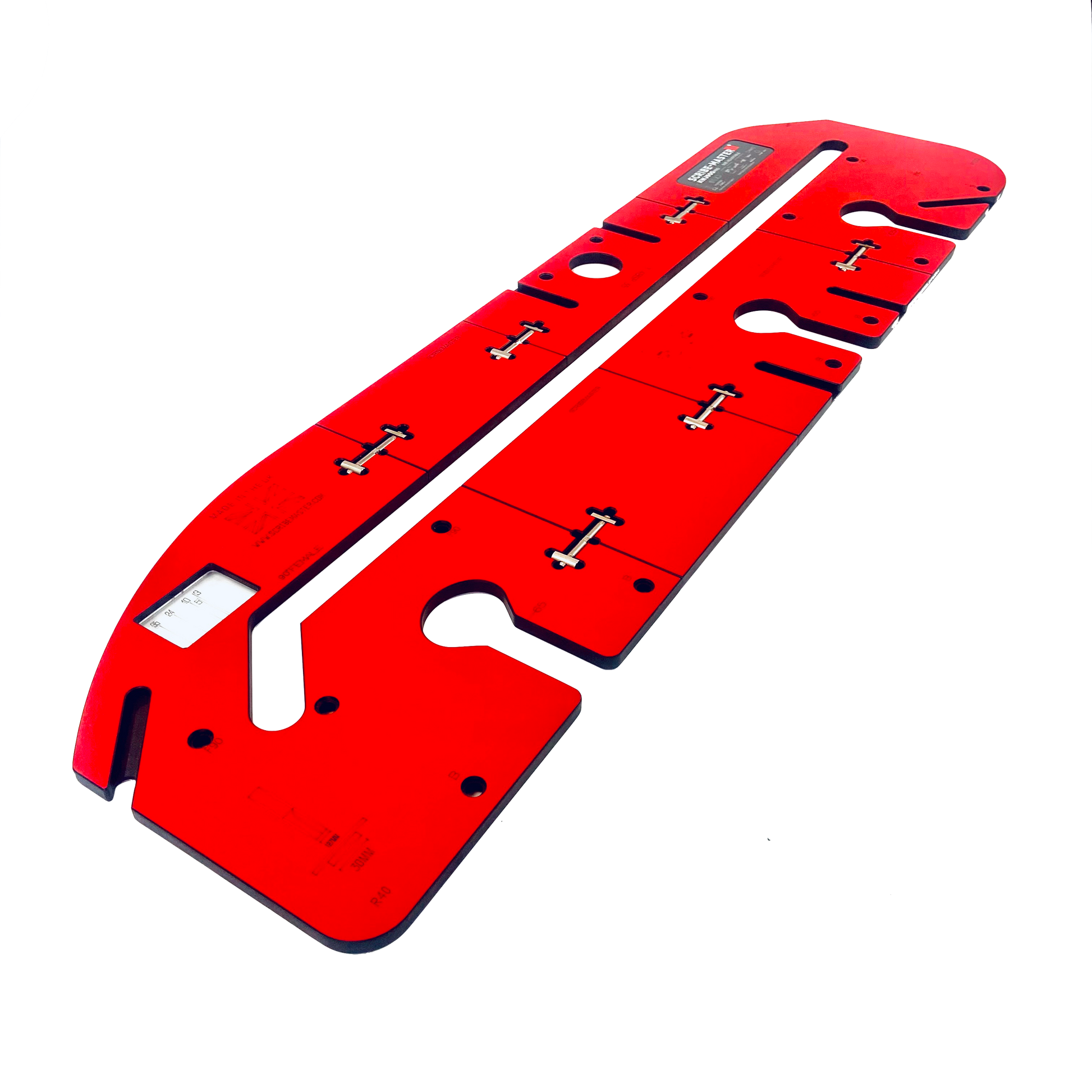

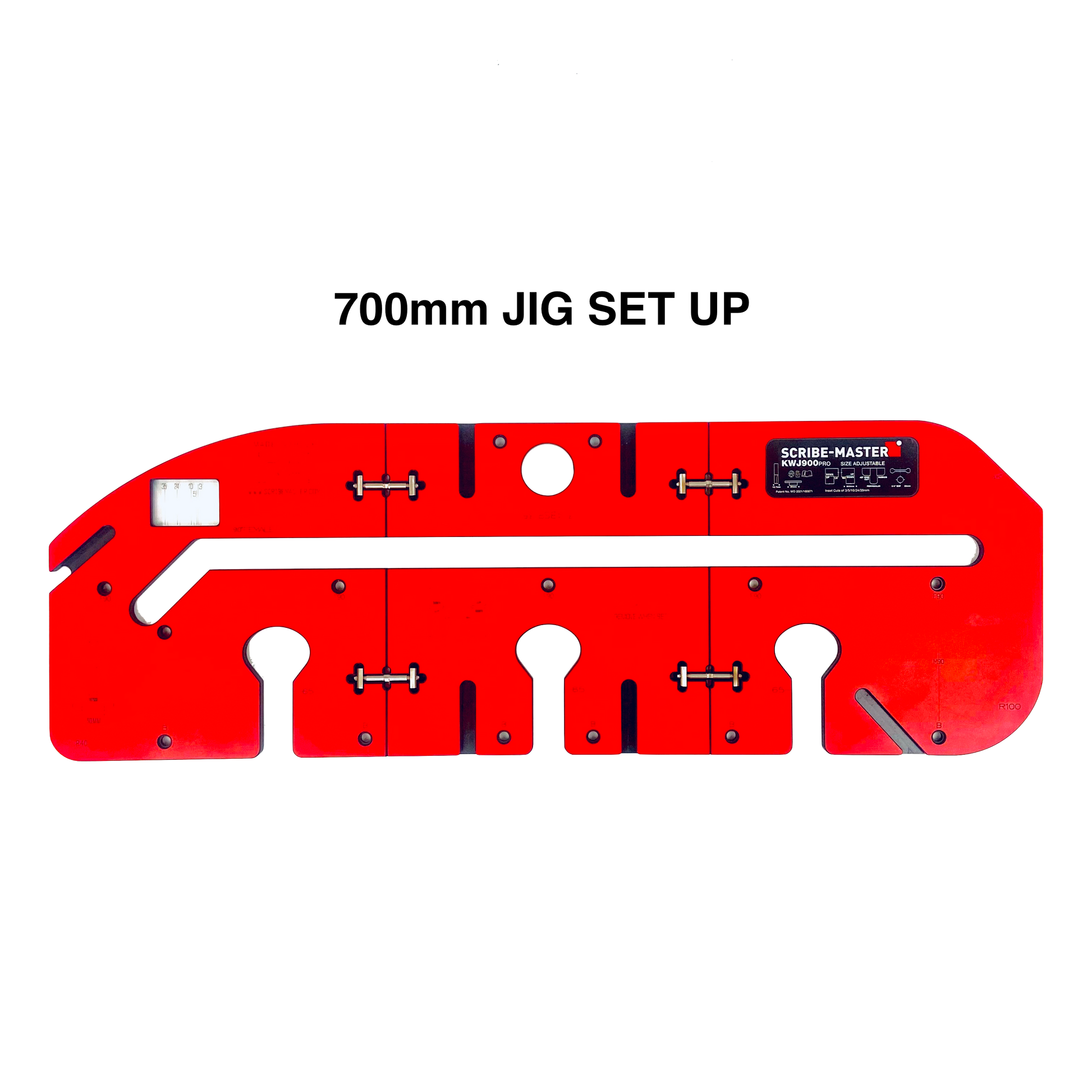

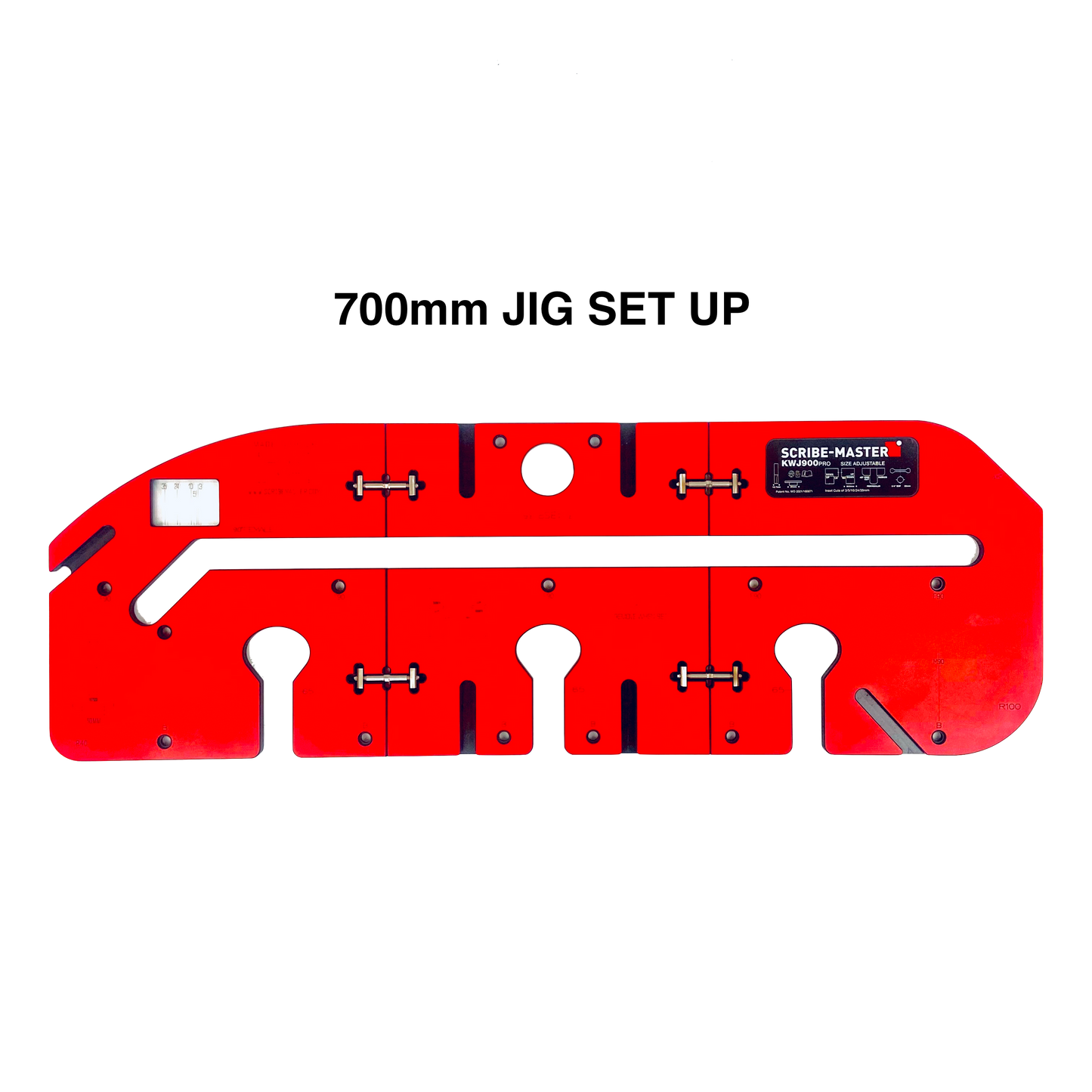

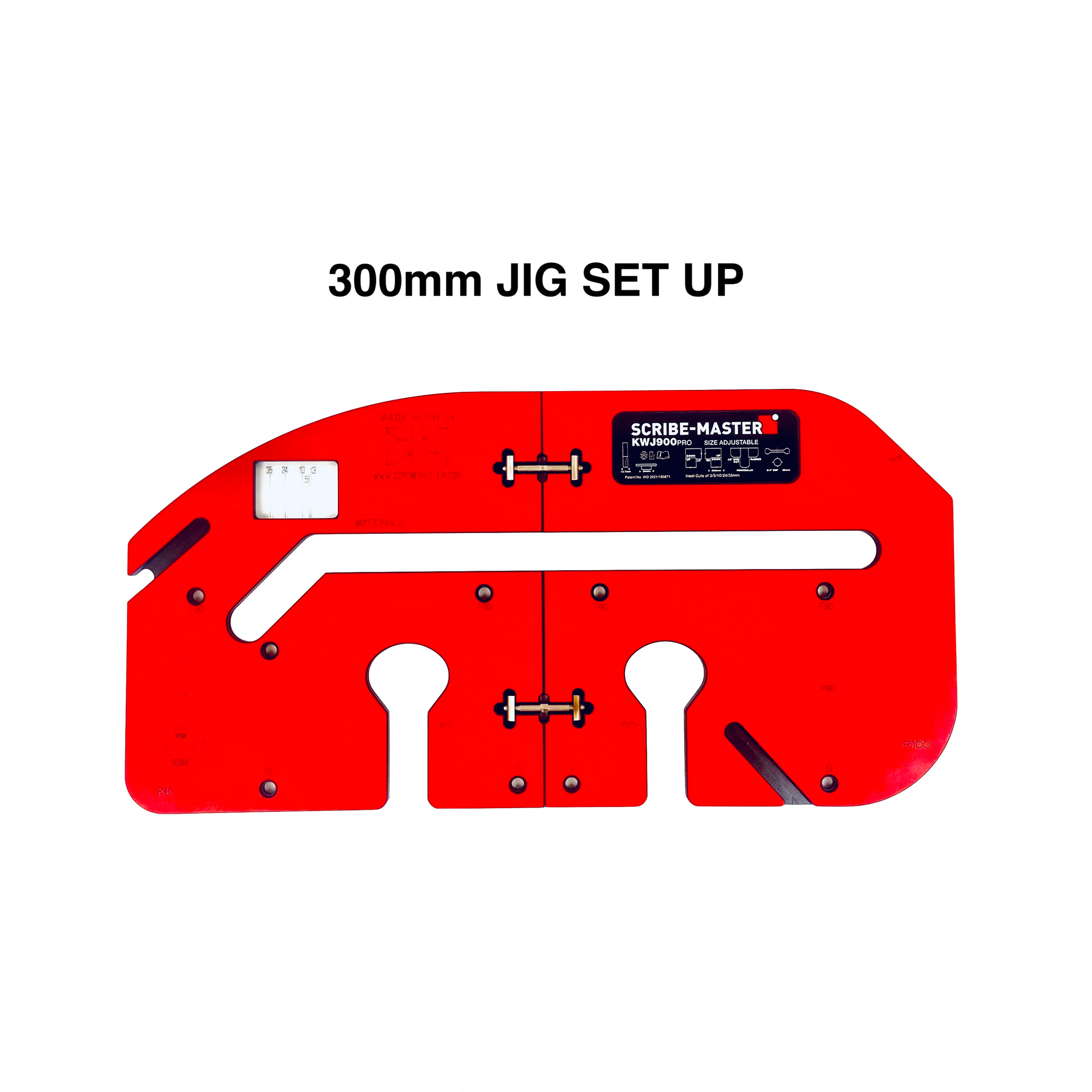

Scribemaster - Kitchen Worktop Jig 900 Pro with Sight Line Technology Window

Scribemaster - Kitchen Worktop Jig 900 Pro with Sight Line Technology Window

Regular price £149.99 GBP
Regular price £0.00 GBP Sale price £149.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:KWJ900PRO

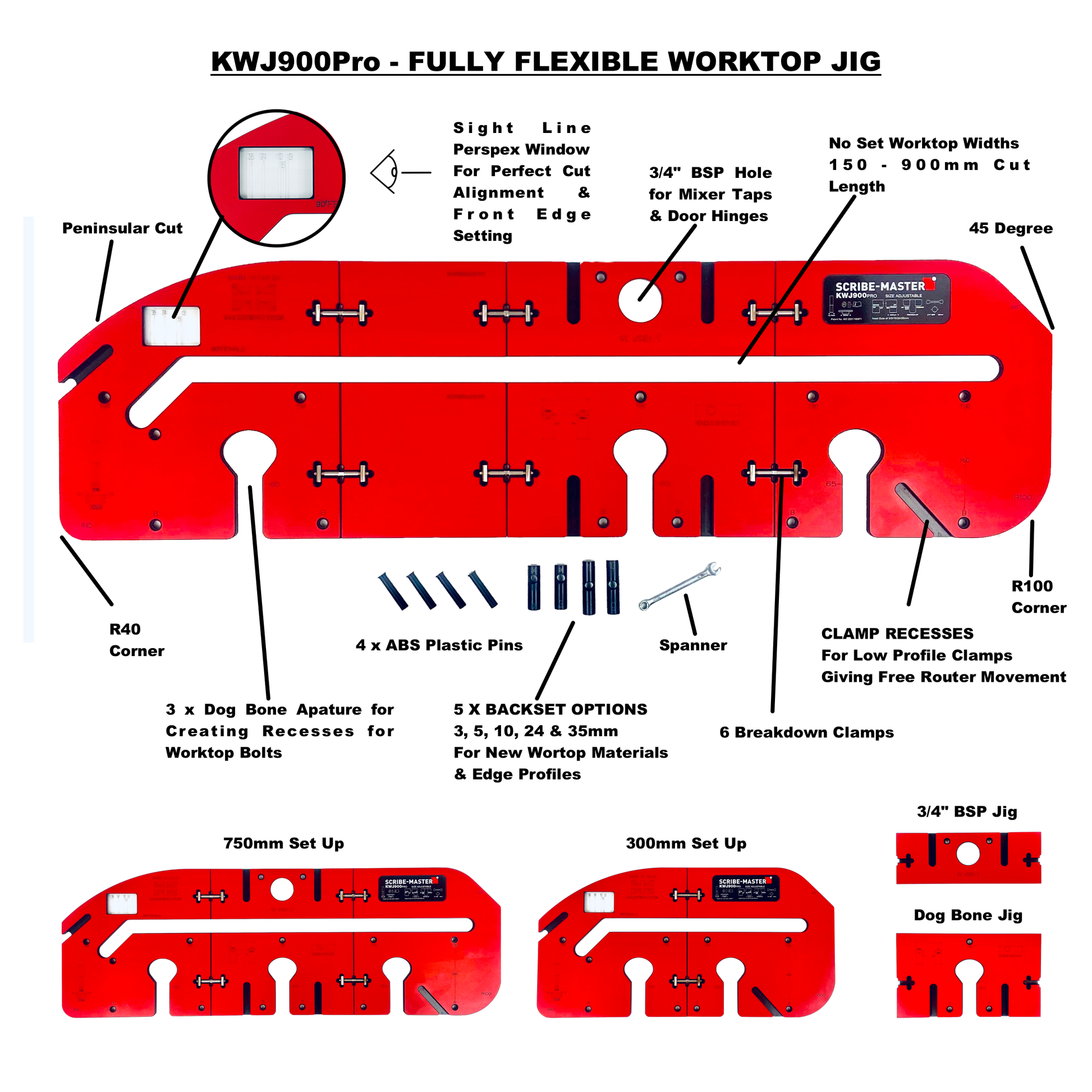

Pro Multi-material jig for worktop joints 150mm - 900mm

  • EASY 1..2..3 Patent Pending Sight Line Technology. (More Info Click Here)

    1. Mark your cut line using your square.

    2. Line up the line with the window in the jig.

    3. Make your cut.

    No More spacing from the back end of the jig

  • FRONT EDGE SETTING All settings are done from the front edge eliminating any discrepancies from scribing or when using non-standard width worktops using Sight Line Technology Window.

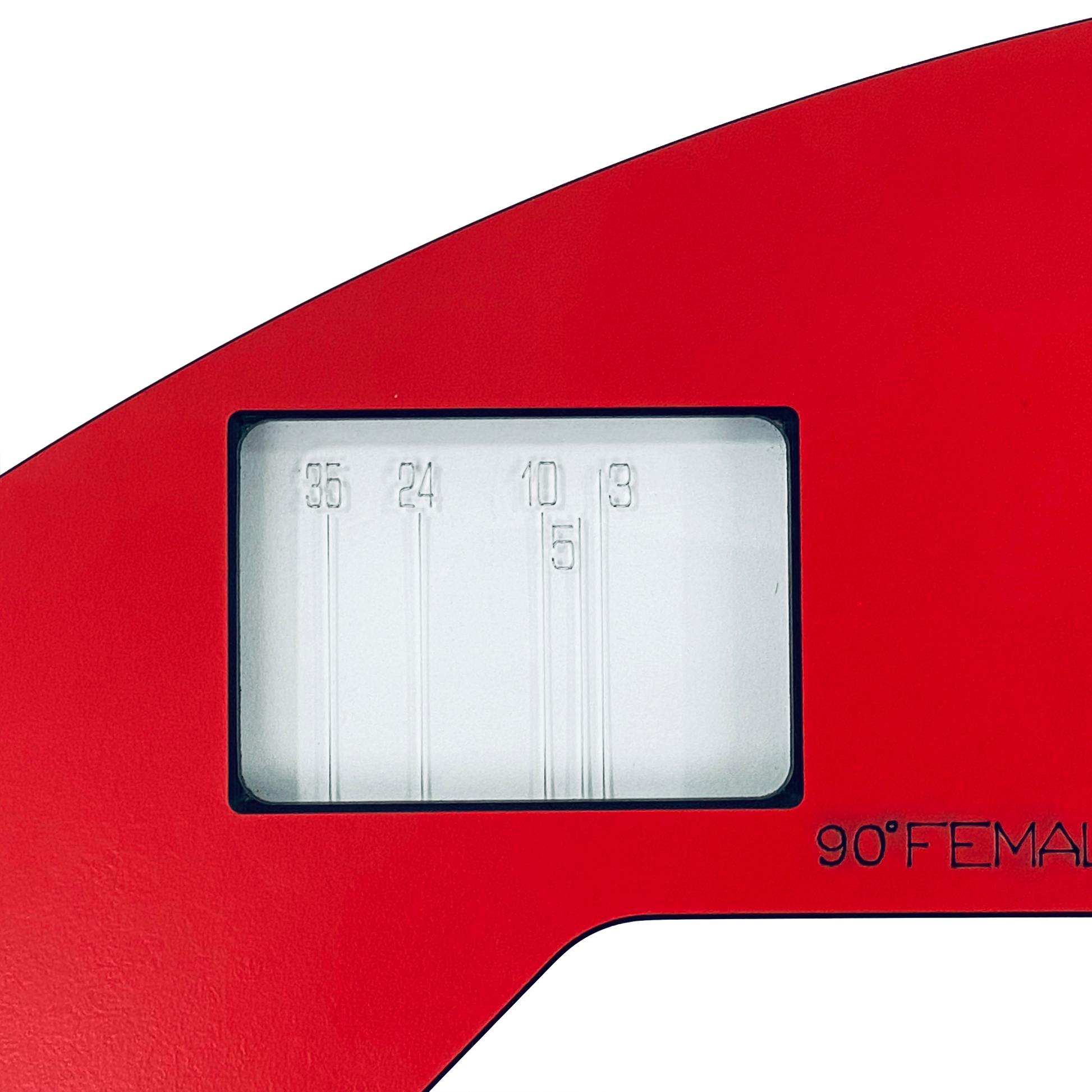

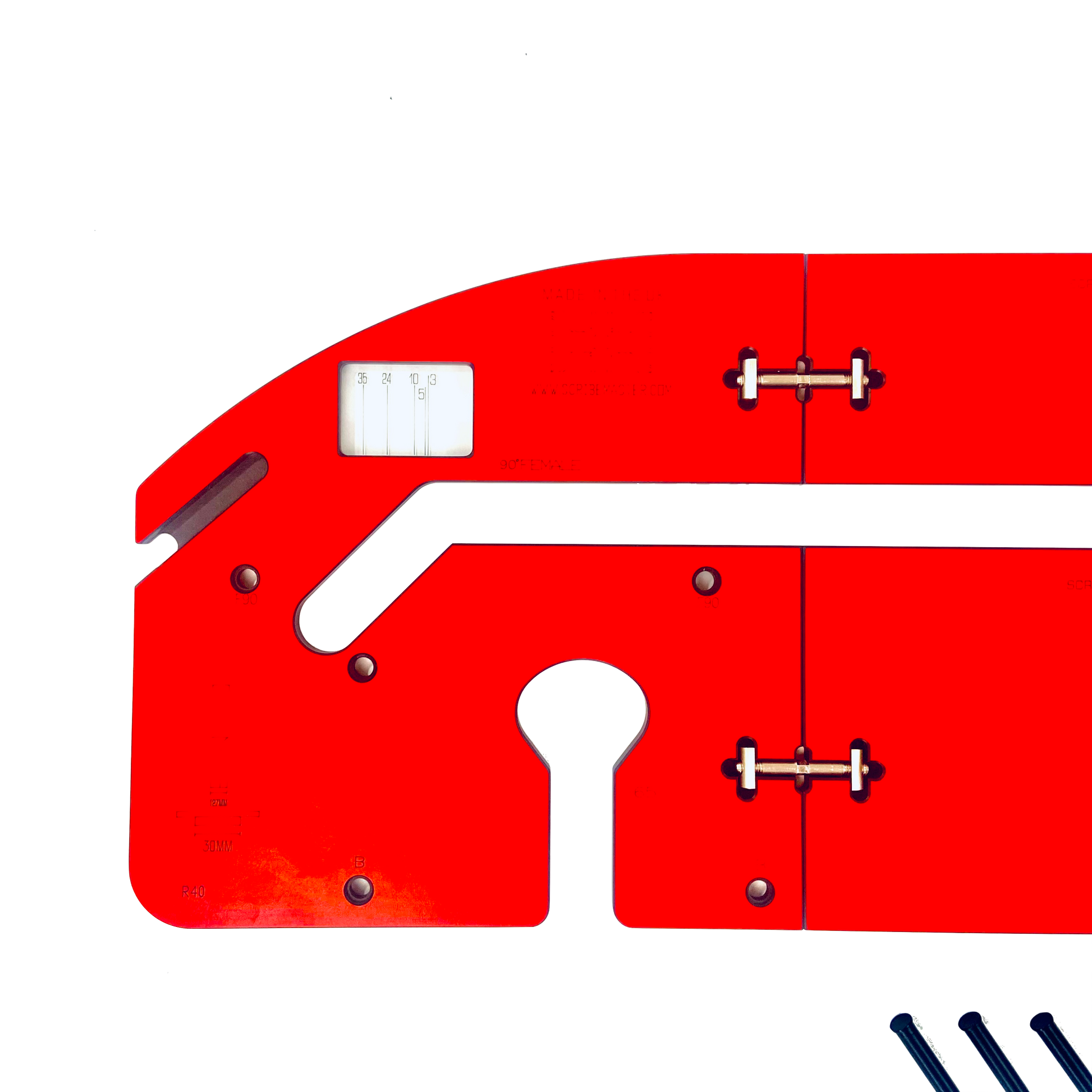

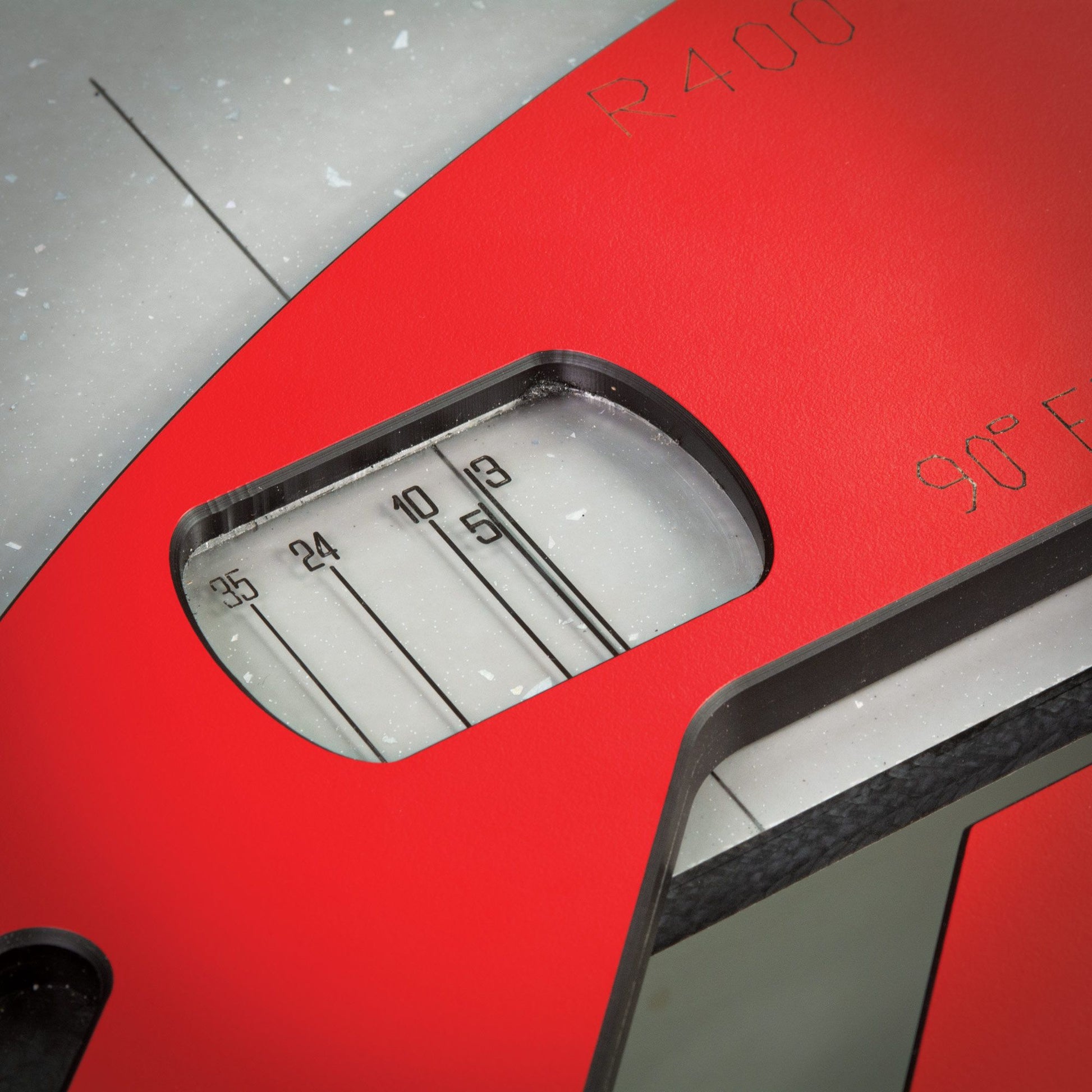

  • EASY SET REFERENCE WINDOW Fast set up for any backset, simply align to a measured line

  • 5 BACKSET OPTIONS (3, 5, 10, 24, 35mm) to meet the demands of new materials, edge profiles and trends

  • SET UP as 300mm, 750mm or 900mm Jig

  • BREAKDOWN to suit job size, easy storage and portability, just 35cm x 35cm x 6cm

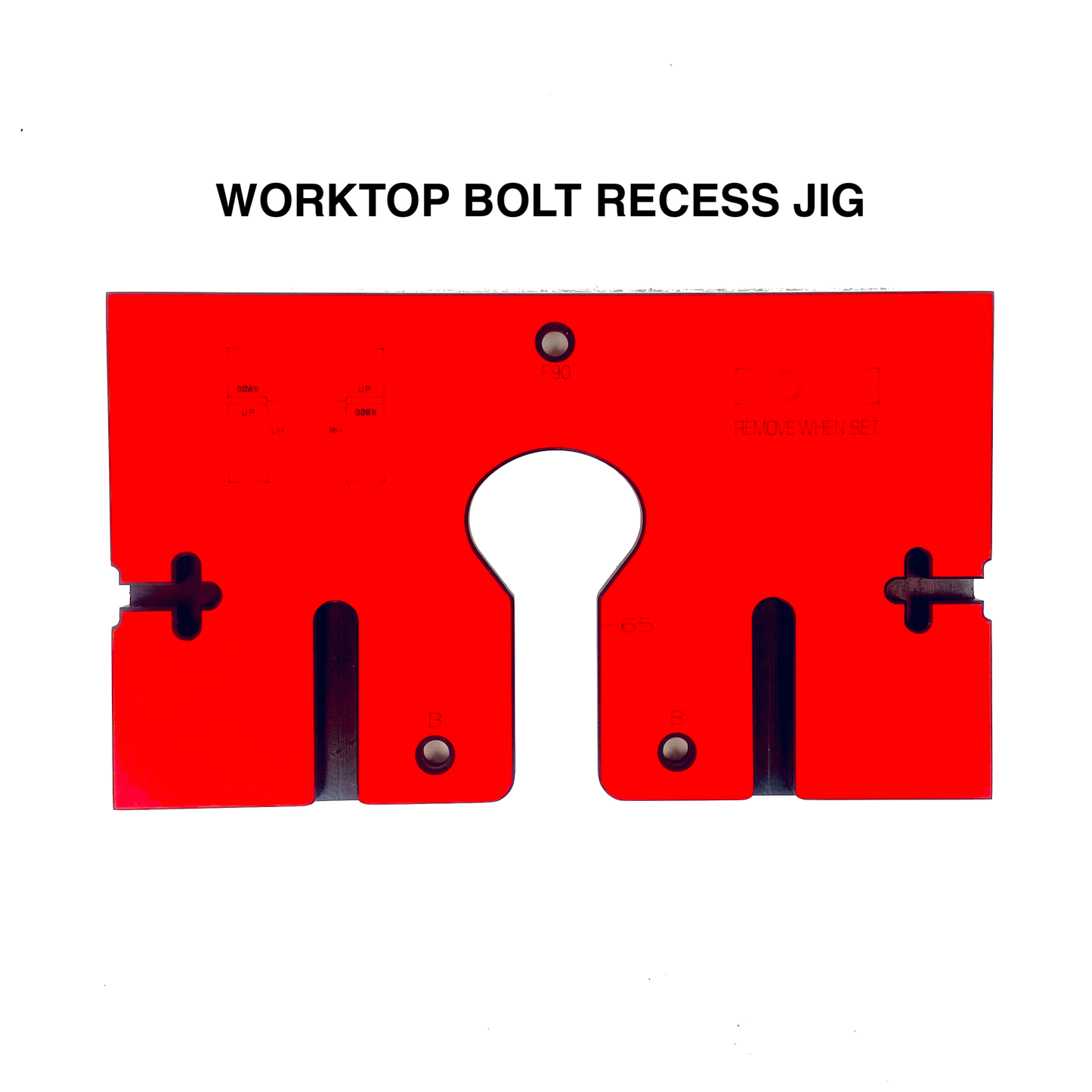

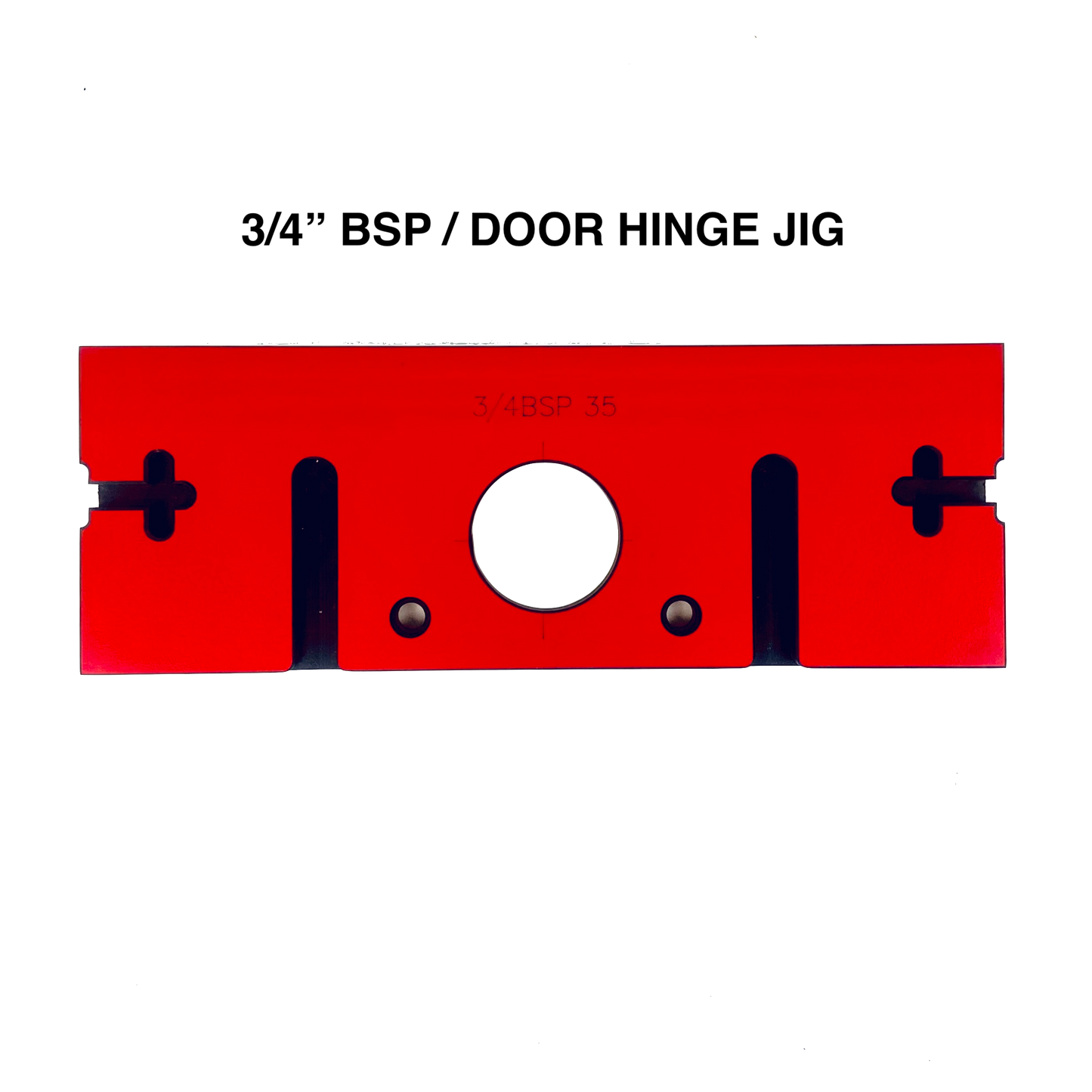

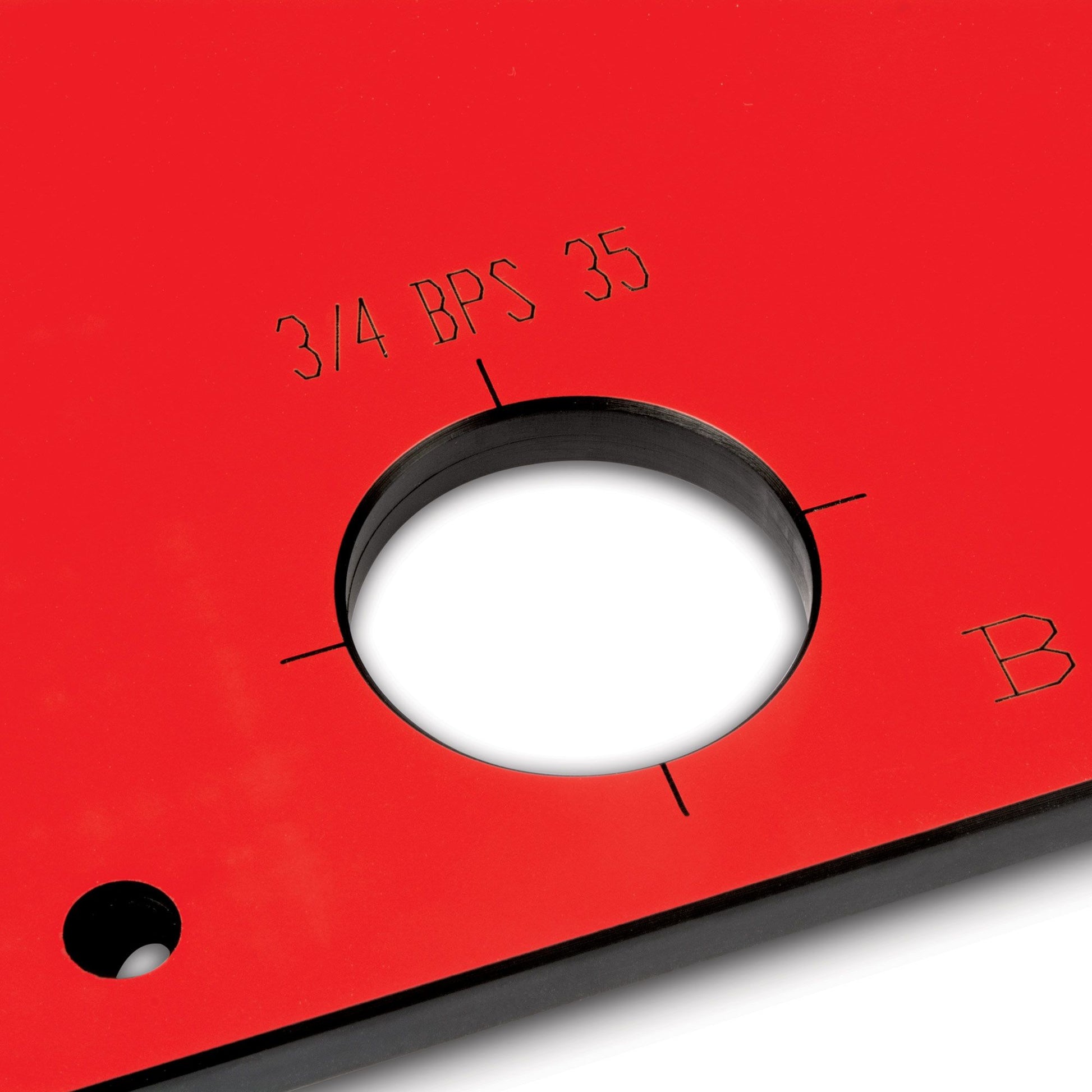

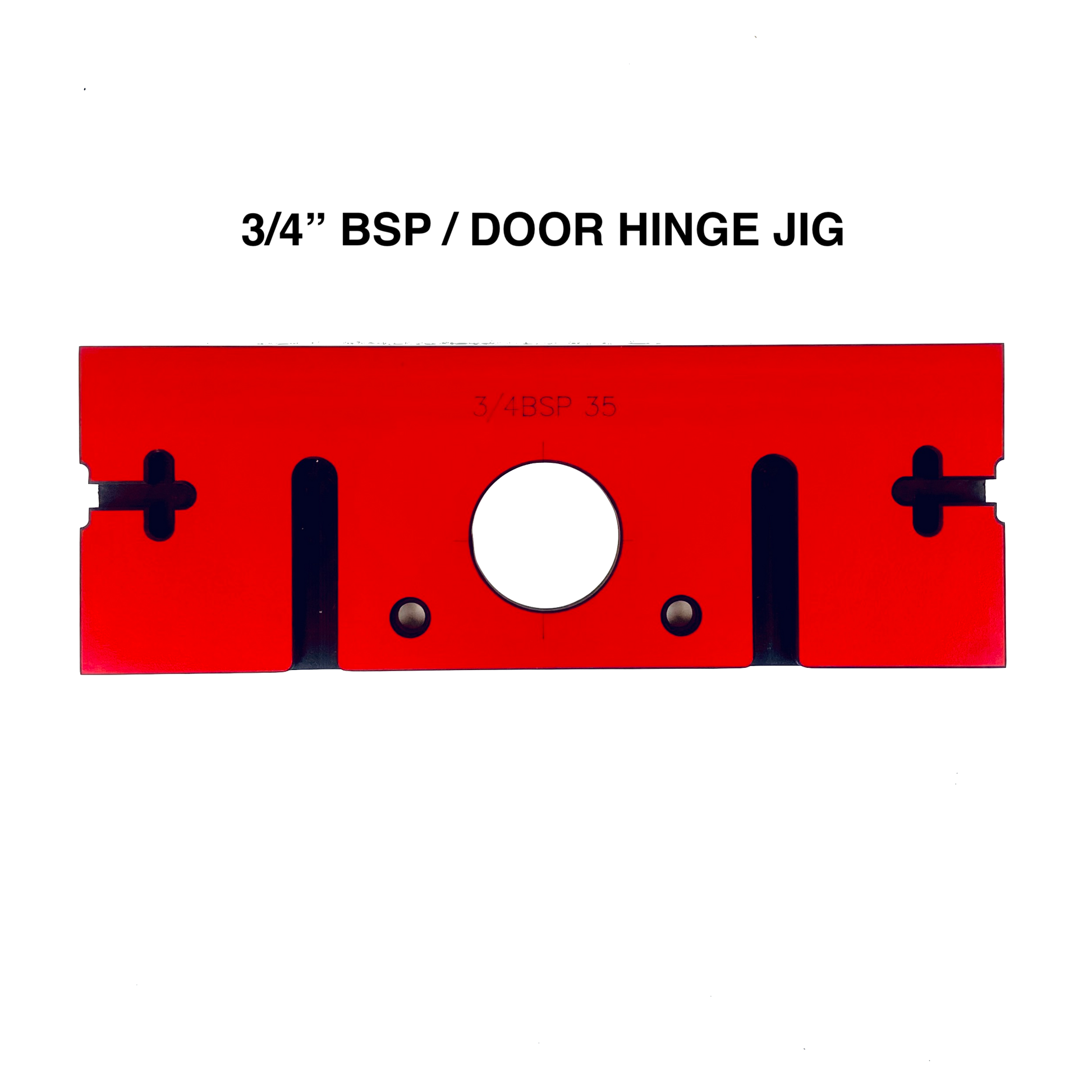

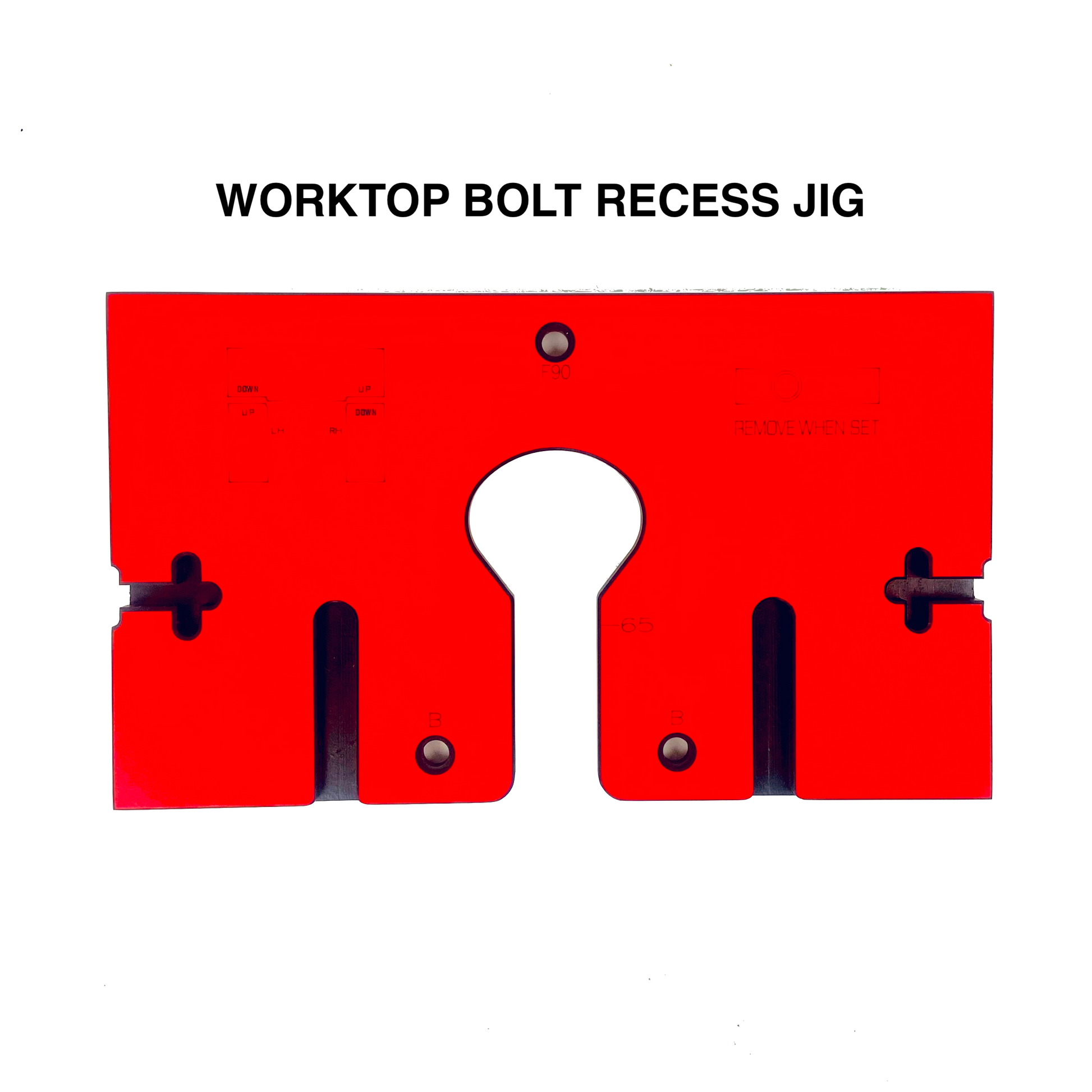

  • 2 x SEPARATE 3/4" BSP/Door Hinge & Dog Hole jigs

  • FLUSH EDGE COMPATABILITY Allows worktops to be cut flush with door faces for handleless contemporary styles without additional measuring or marking up

  • SINGLE PASS JOINT CUTTING ON NARROWER BACKSETS WITH THINNER WORKTOPS Minimises strain on the router and extends cutter life

  • FAST JOINTING Cuts a full male and female joint in 15 minutes including setting up

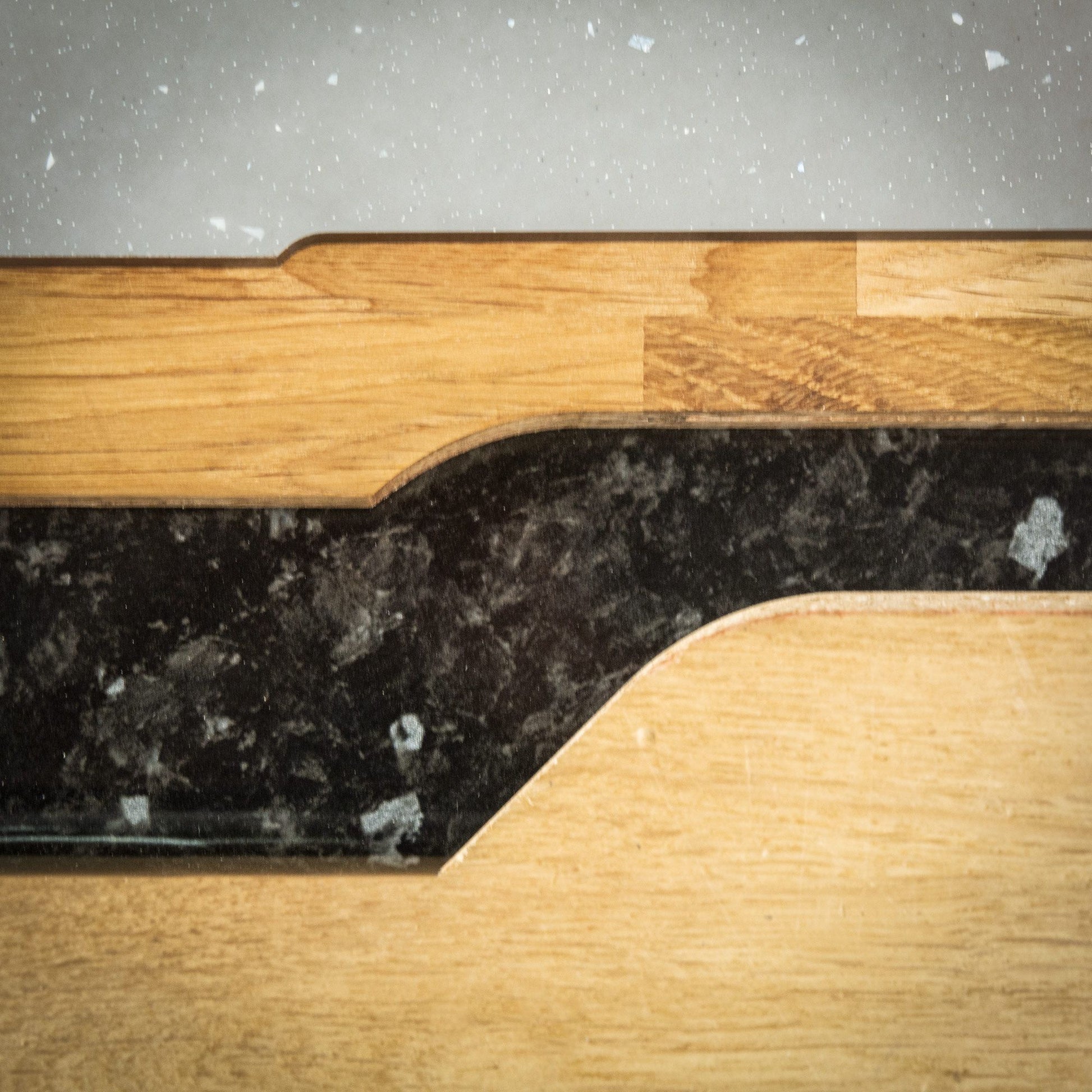

  • MULTIPLE WORKTOP MATERIAL COMPATABILITY Compact laminate, Composite, Solid Wood, Chipboard Laminate

  • NO SET WORKTOP WIDTH RESTRICTION No need for alignment pins for worktop widths

  • FRUSTRATION FREE SETUP Simple intuitive setup; measure, mark, clamp and cut

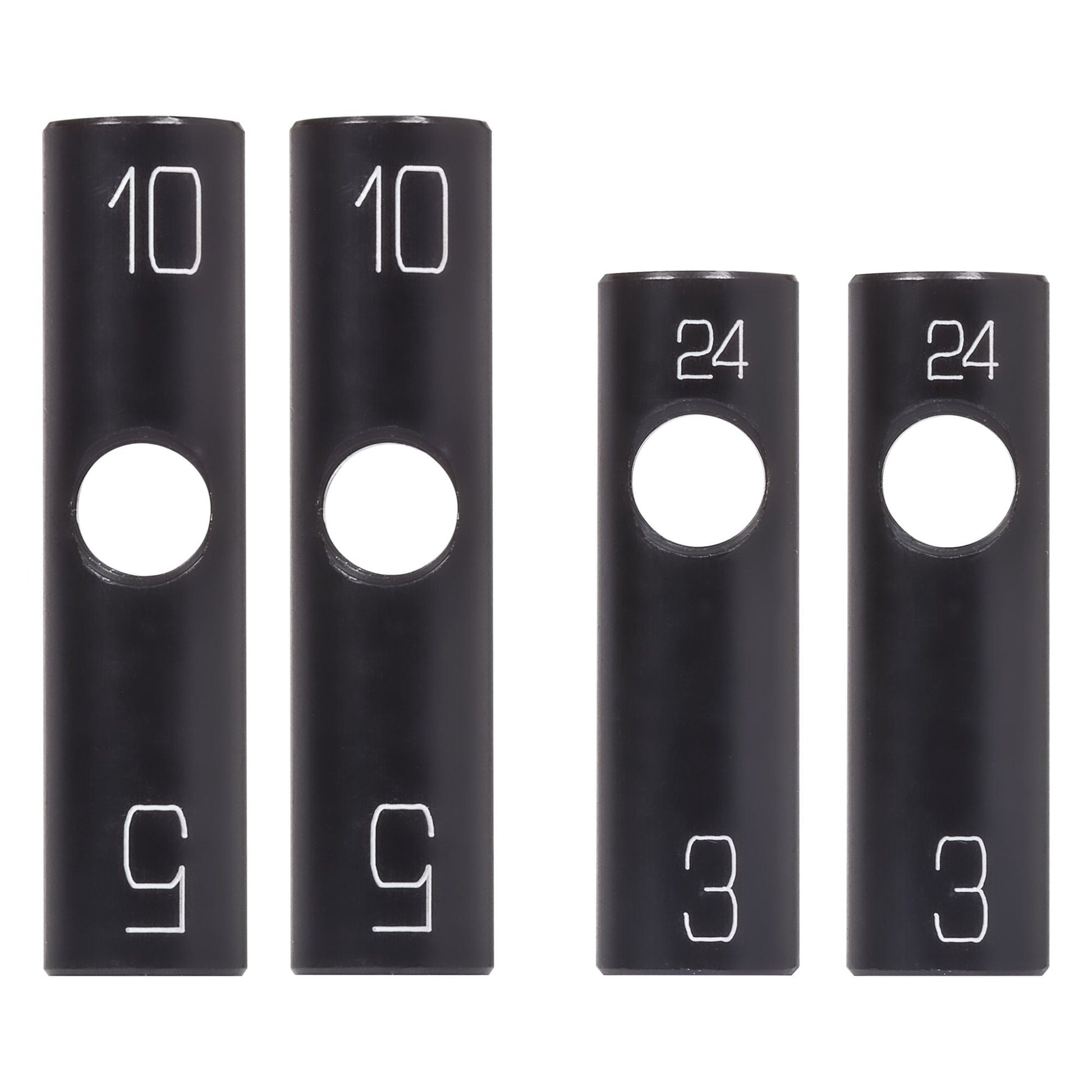

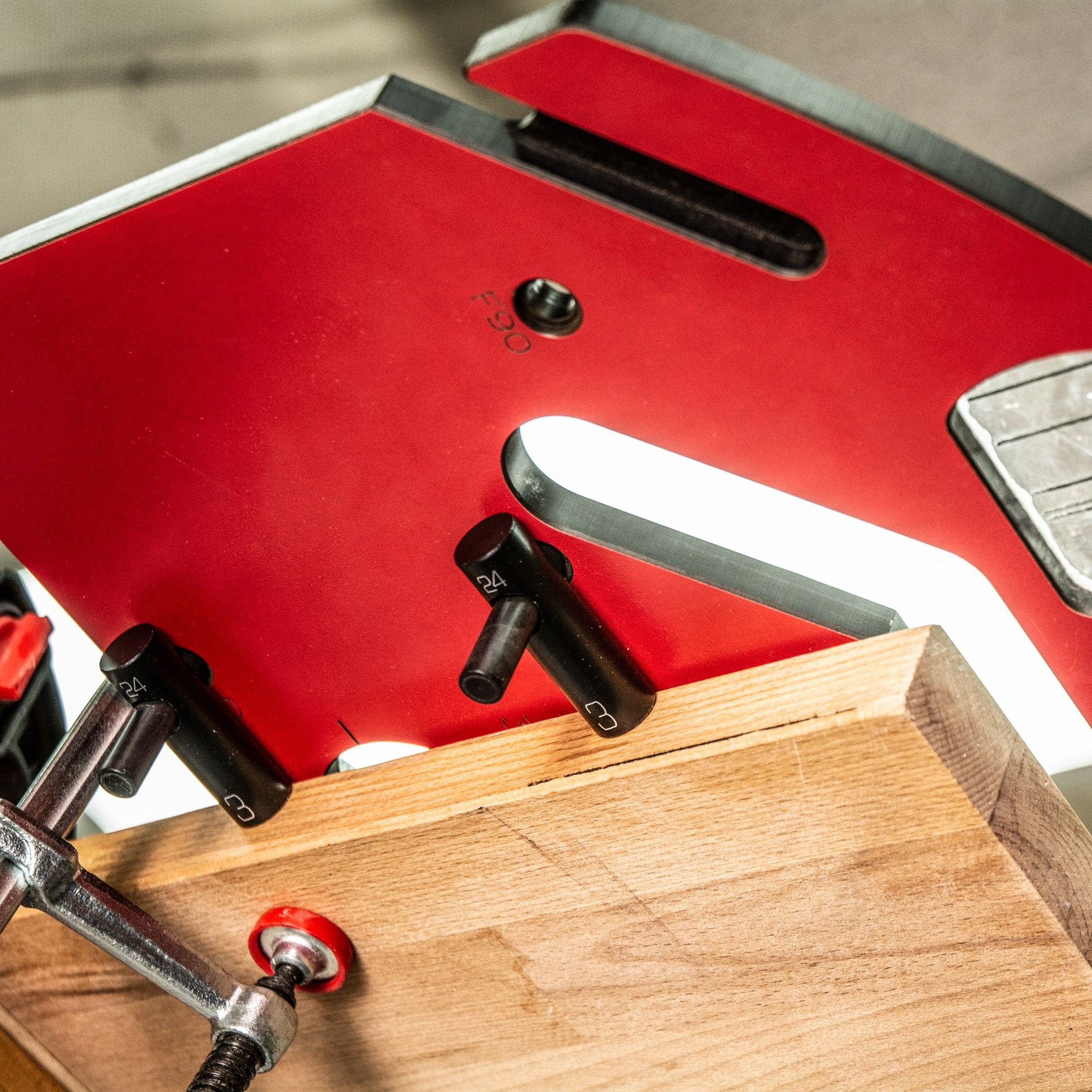

  • OFFSET CAMS Unique backset wedges for consistent easy setting

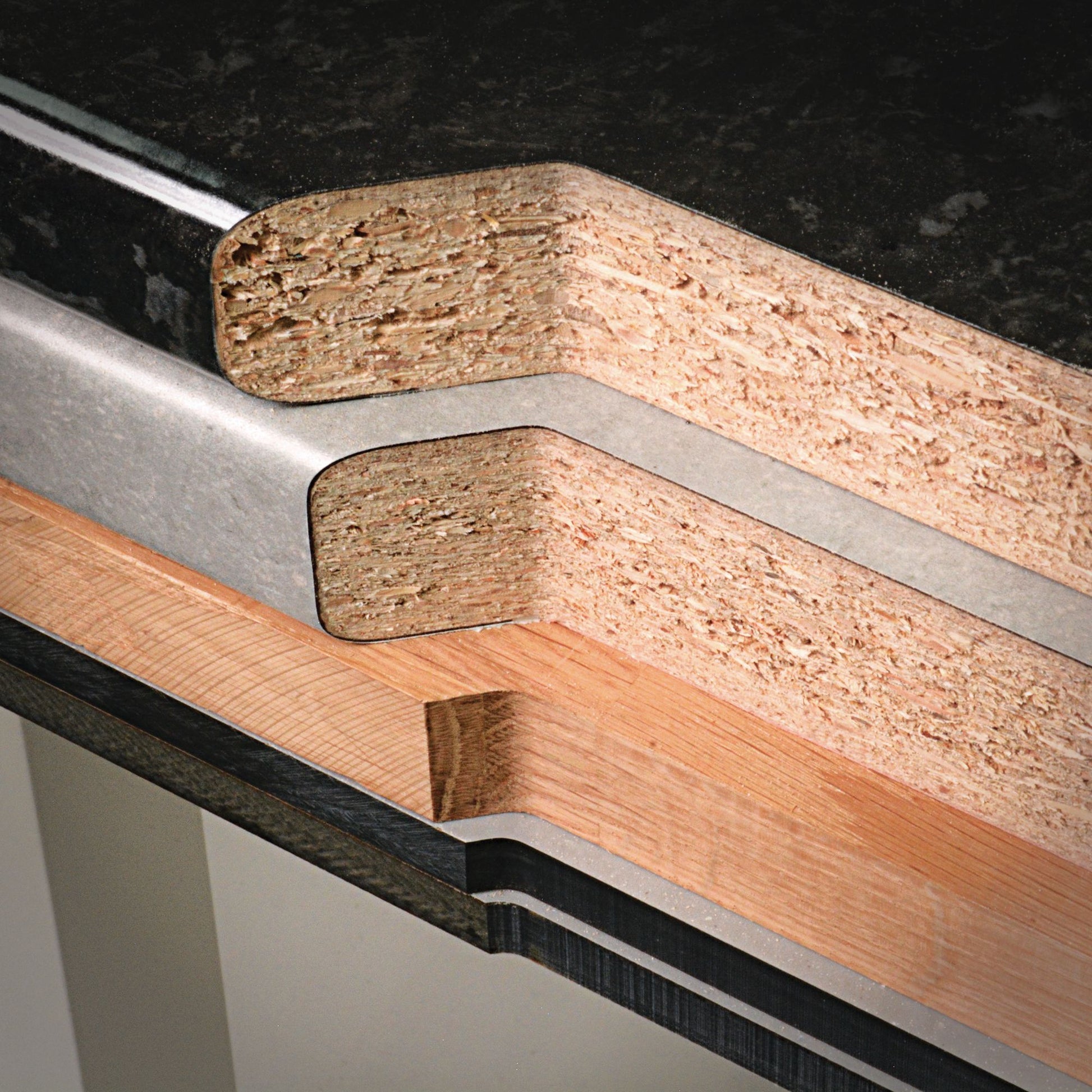

  • EDGE PROFILE COMPATABILITY Covers square edge, small radius, Postform radius and bullnose profiles

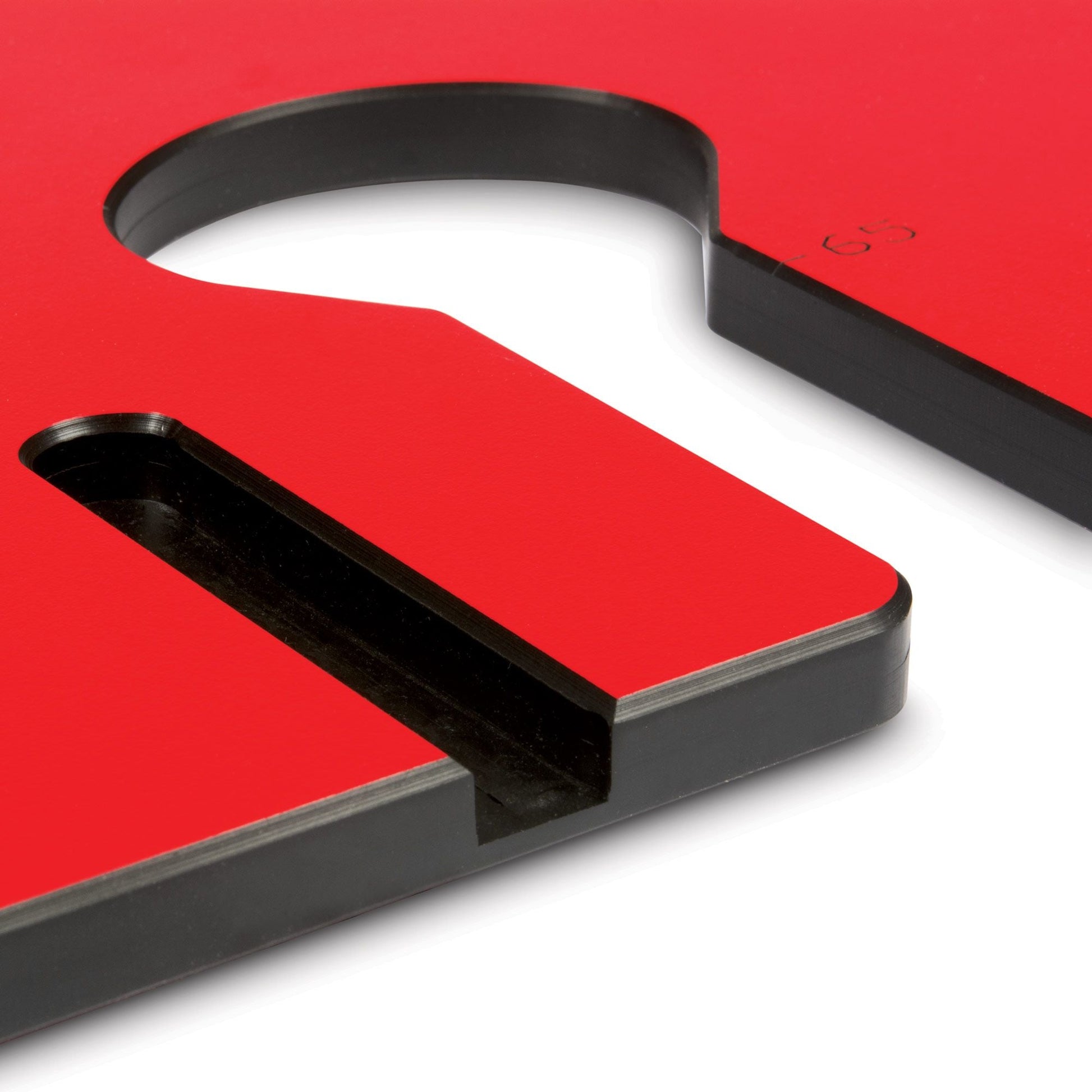

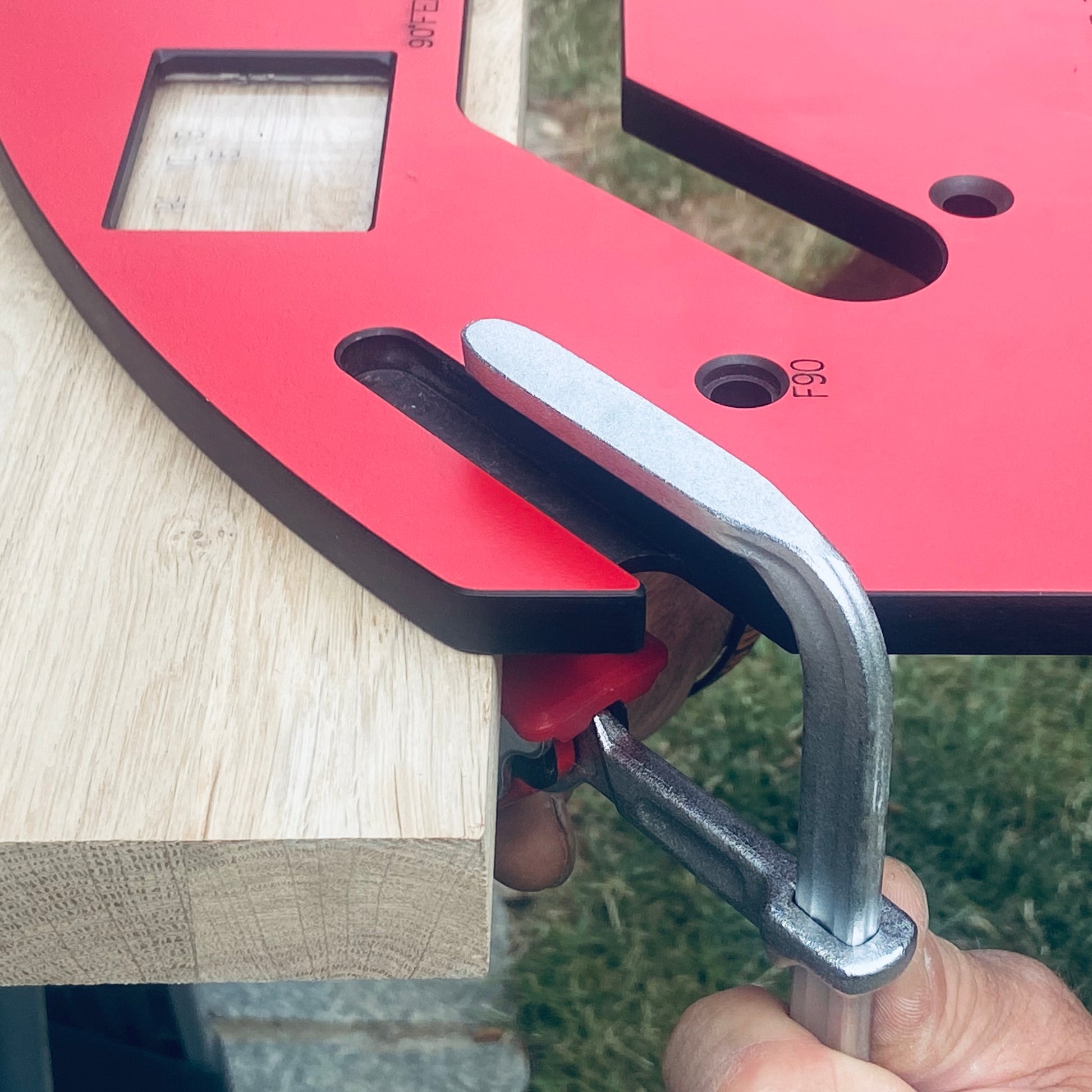

  • CLAMP RECESSES For below the surface clamping for unrestricted routing with plunge saw clamps

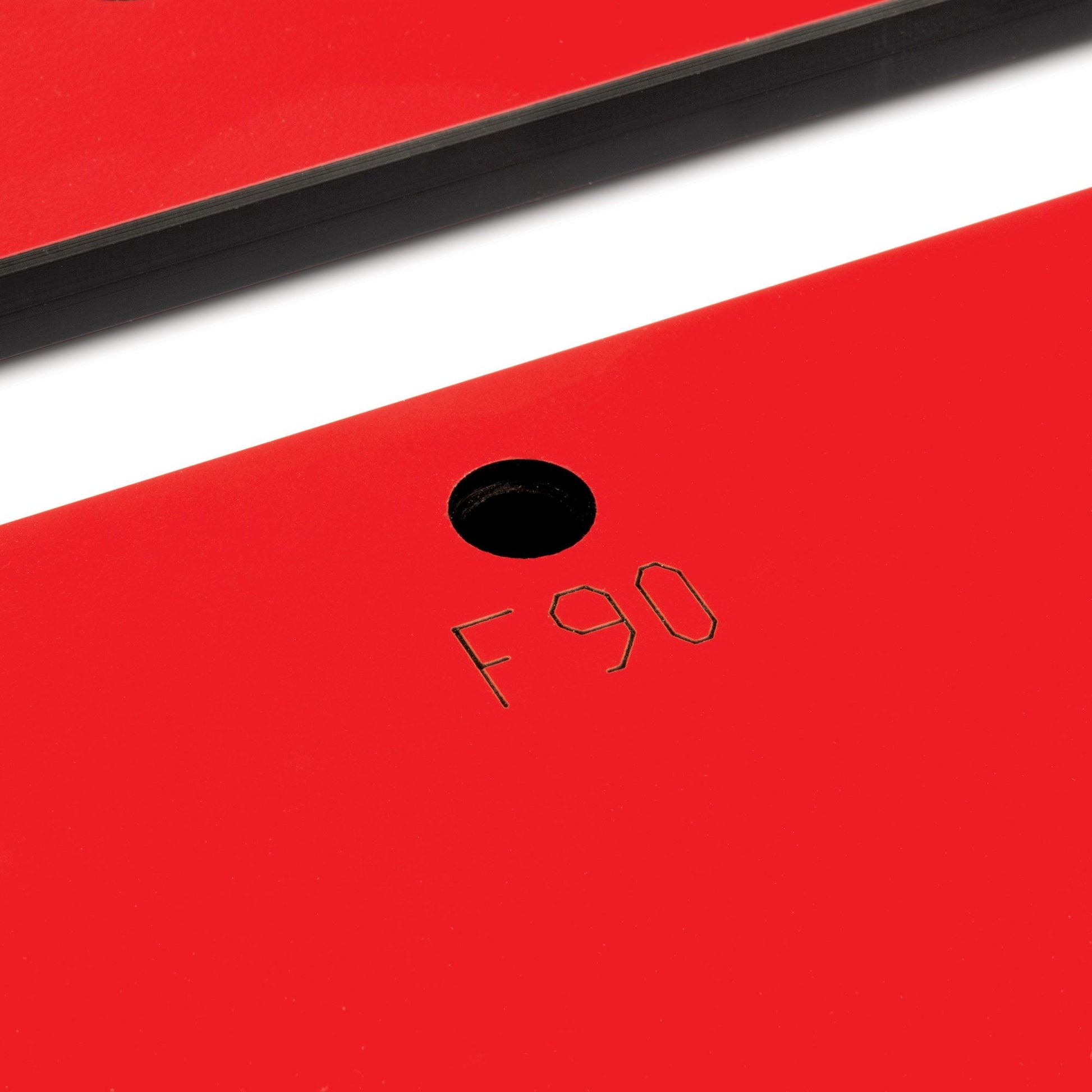

  • ENGRAVED MARKINGS for clear reference.

      Specifications

      Length - 985 mm
      Width - 335 mm
      Thickness - 12 mm
      Weight - 4.73 kg
      End Cut - 45 degrees
      Corner Radius - 40 mm
      Corner Radius - 100 mm
      Corner Radius - 400 mm
      Corner Mitre Joint - 45 degrees
      Female cut material width loss (inset)
      variable
      Bolt recesses - 3
      Bolt recess centres - 175 + 175 mm
      Bolt recess width -14 mm
      Guide bush - 30 mm (not included)
      Plunge router (not included) - 1/2-inch (min. 1300 watts)
      Cutter - 12.7 mm x 50 mm cut (not included)
      Clamps - Two (not included)
