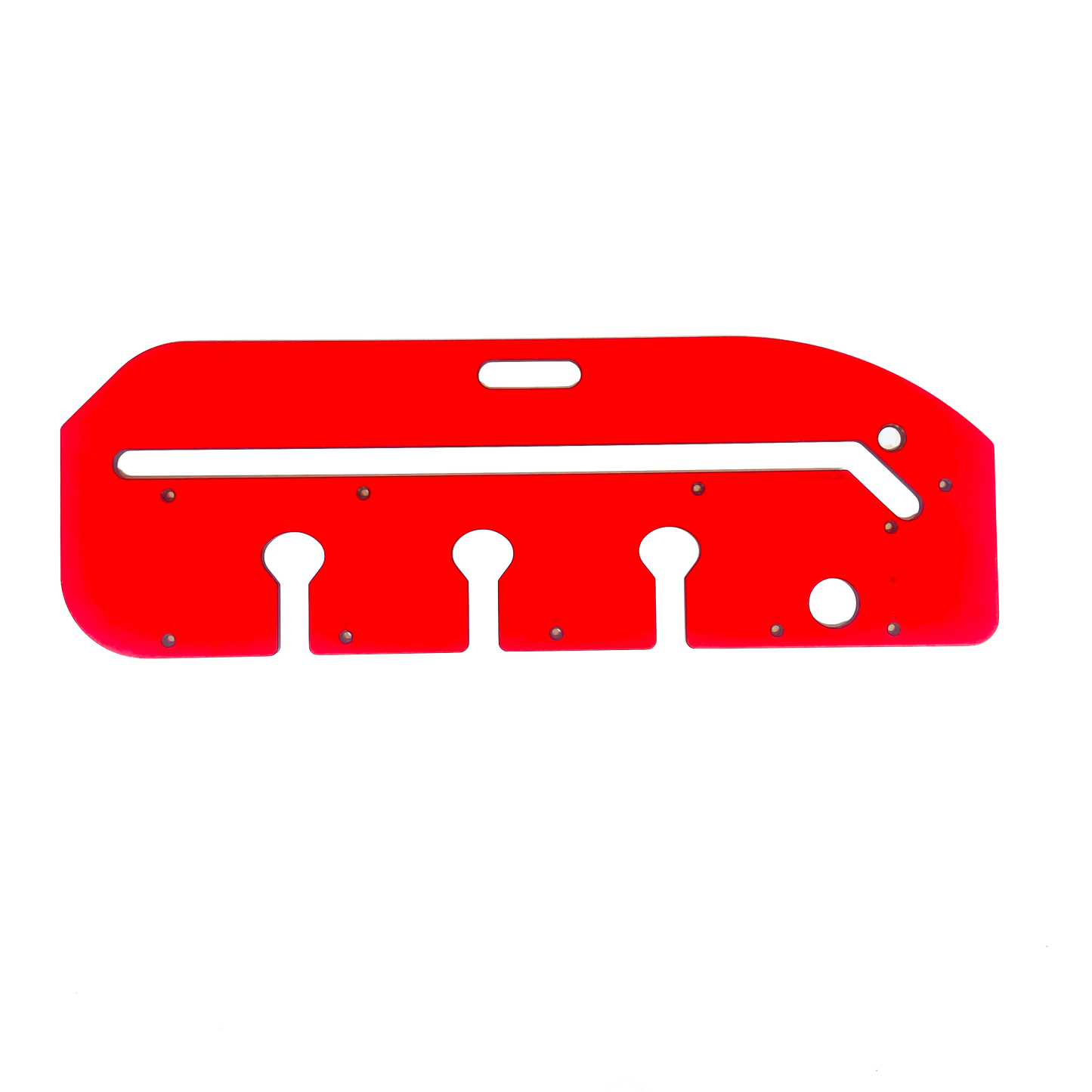

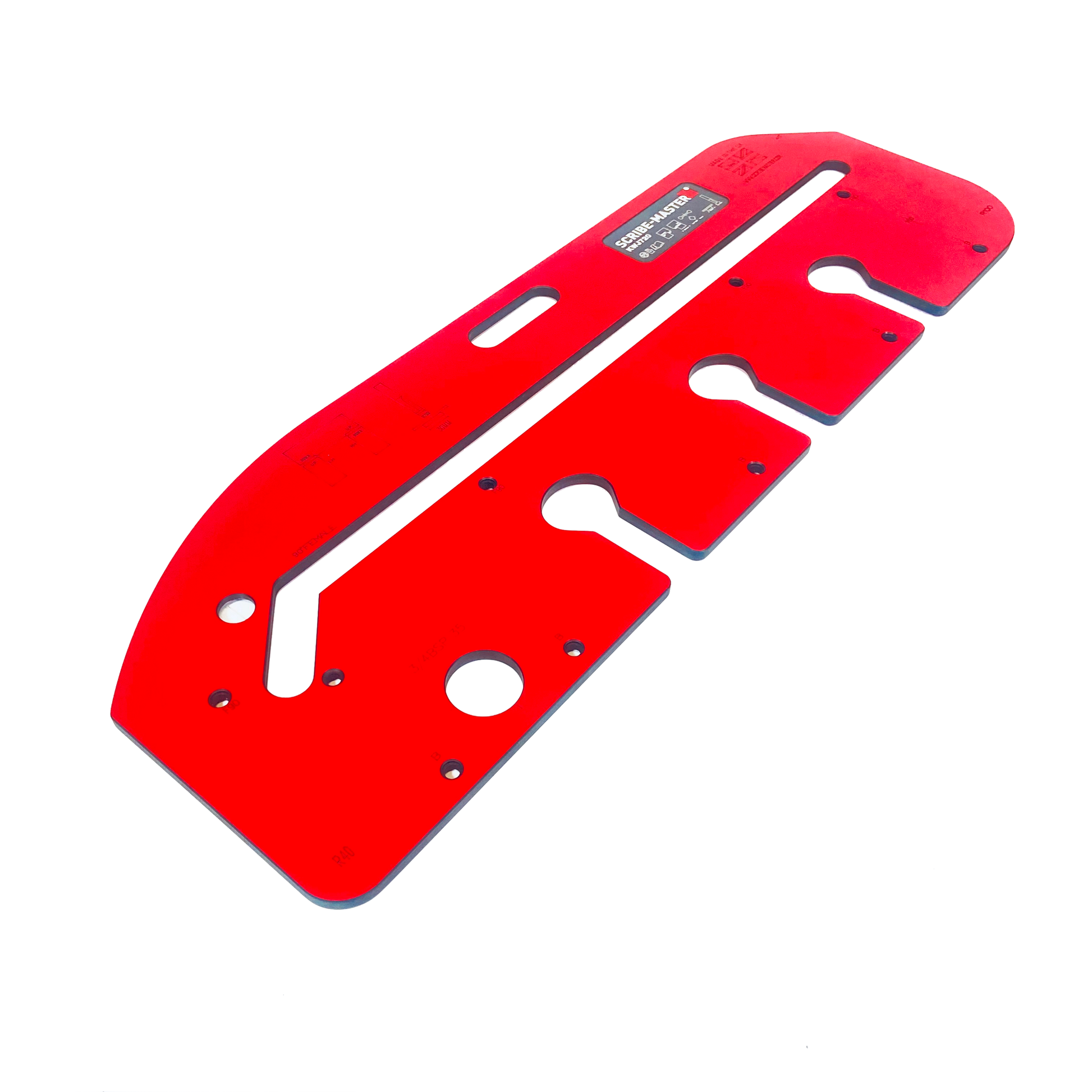

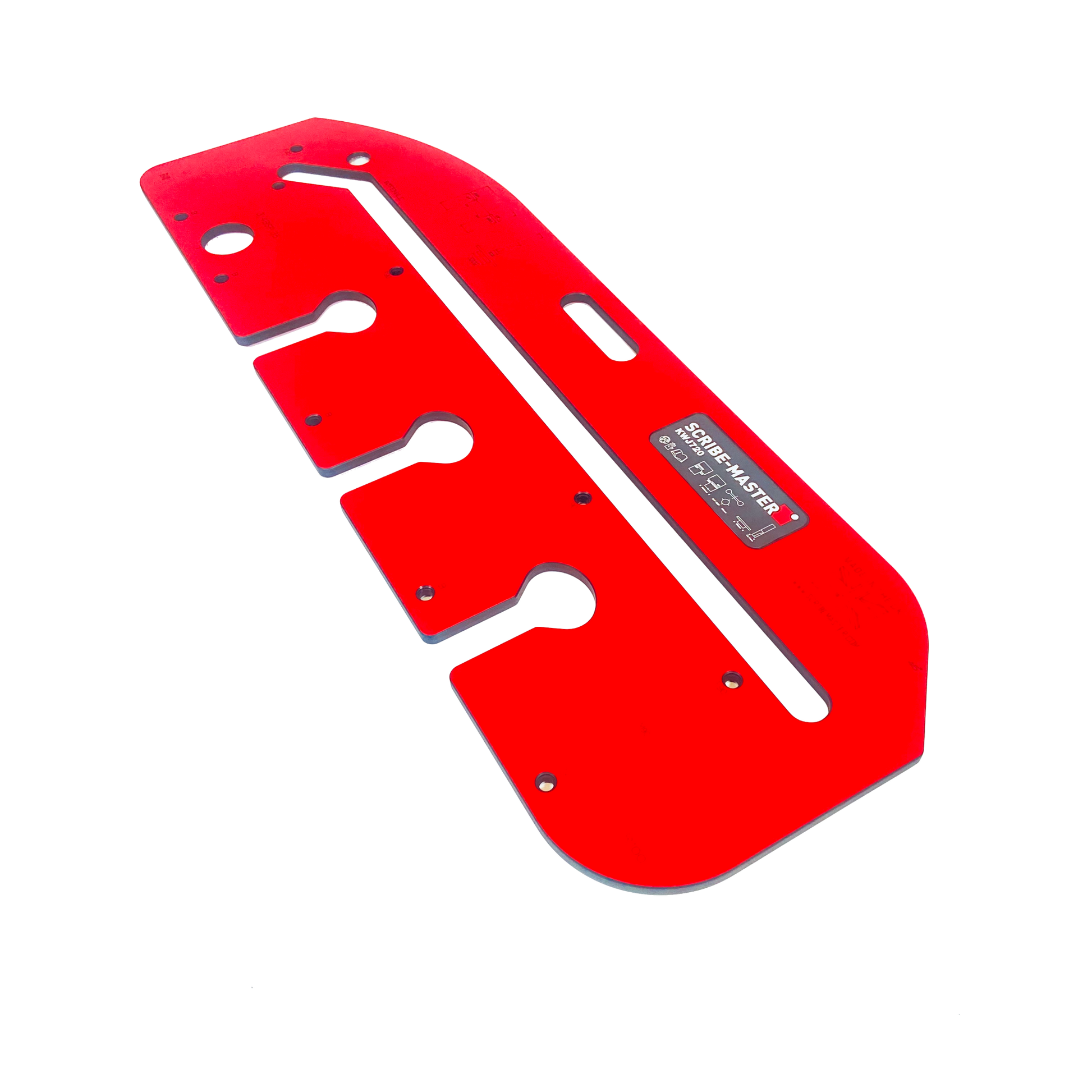

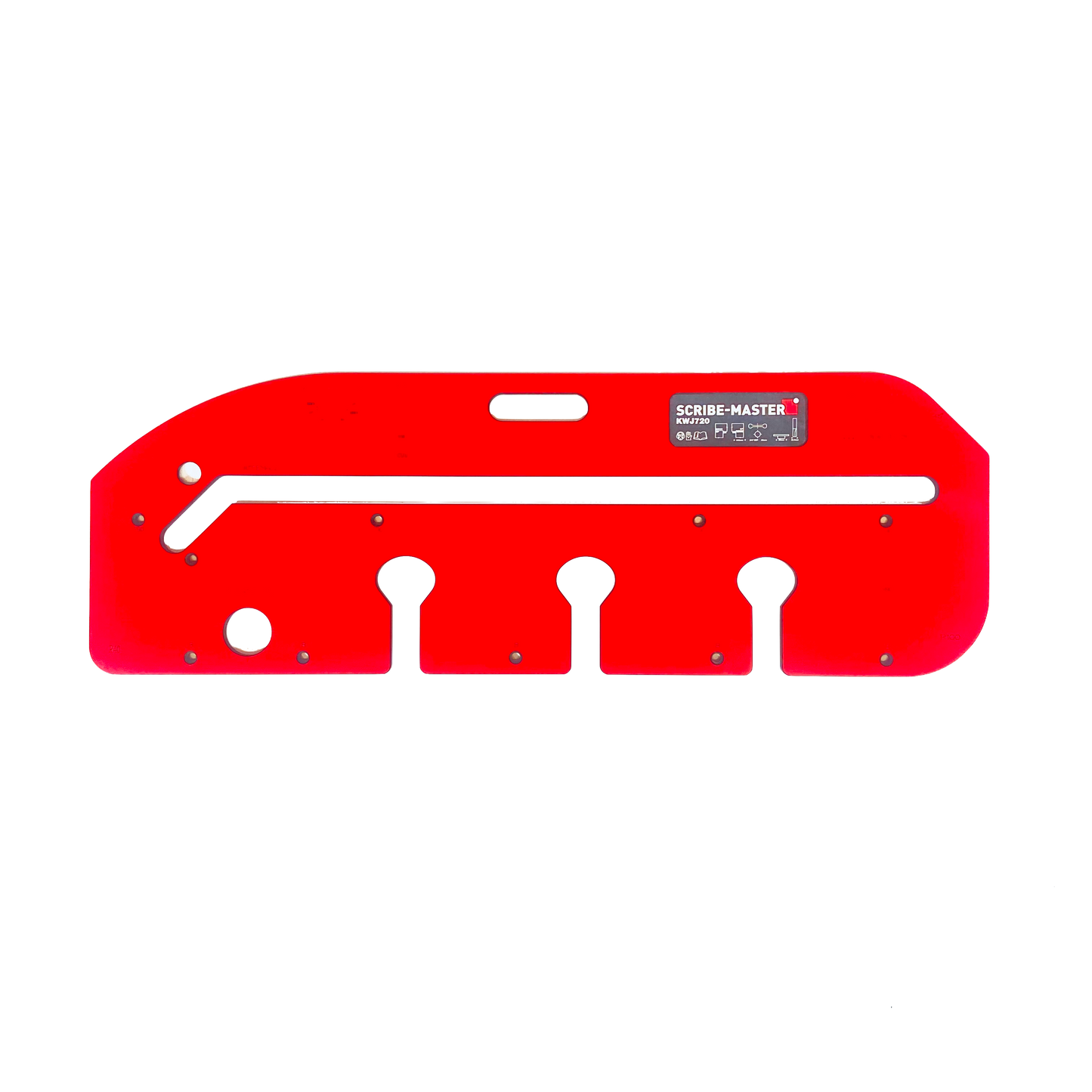

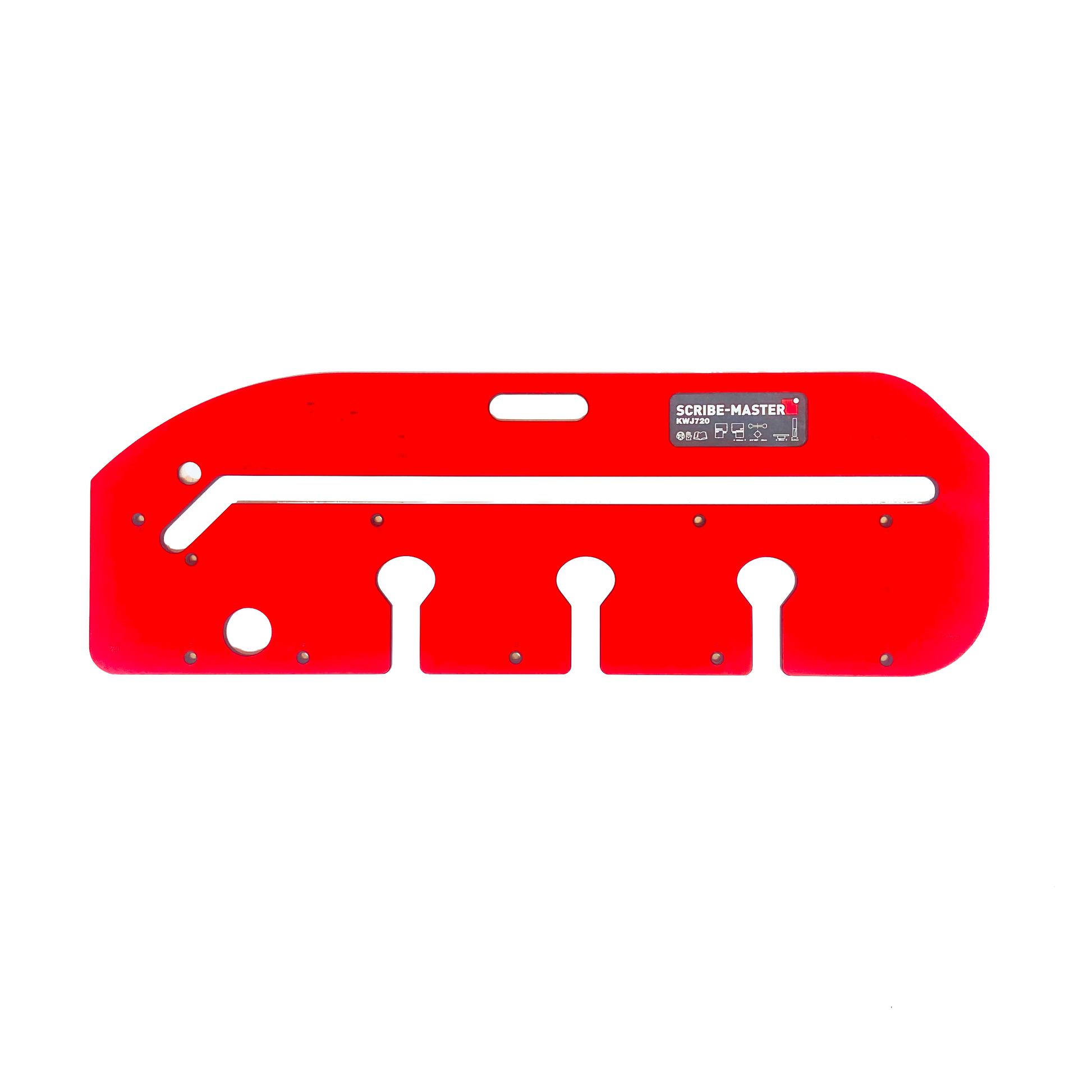

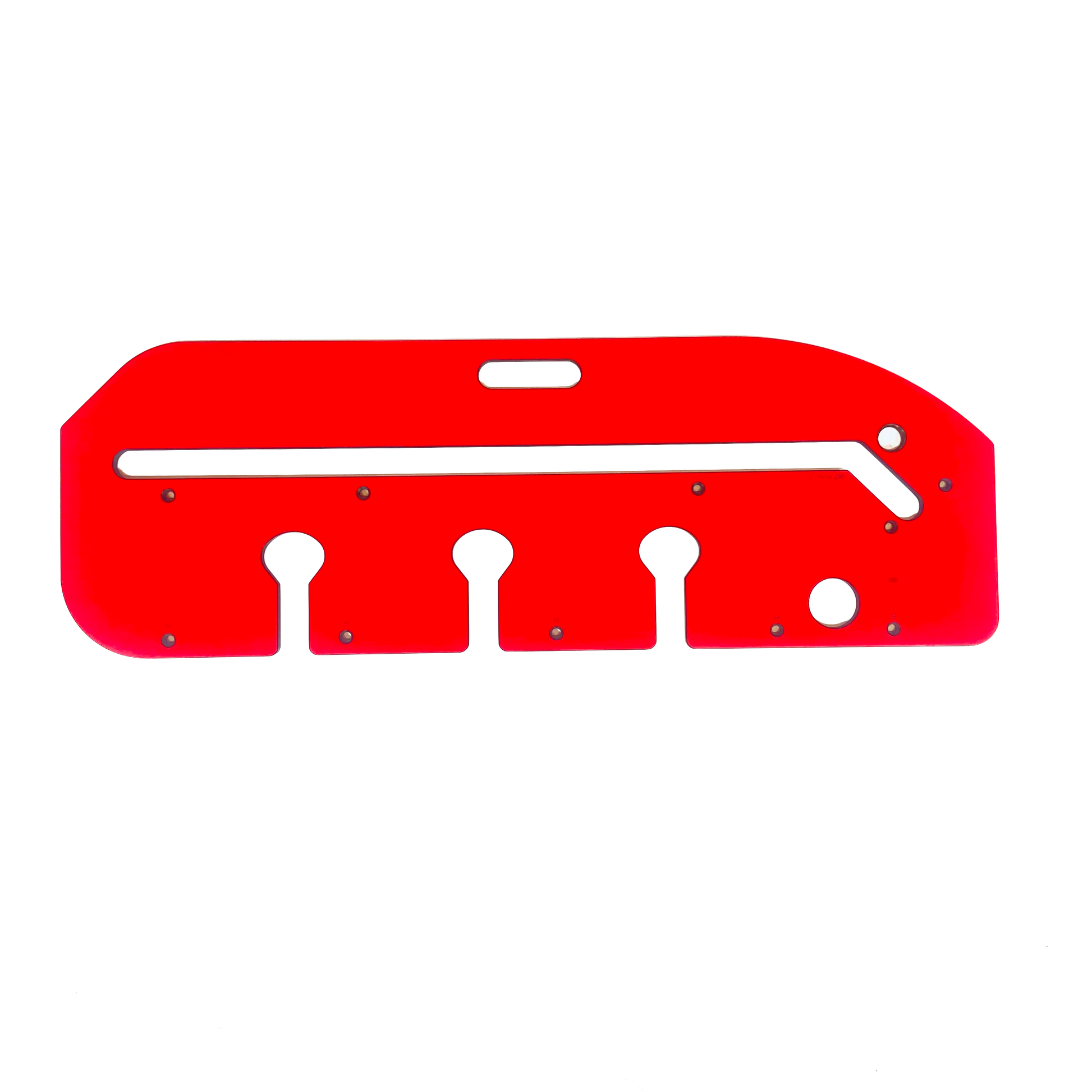

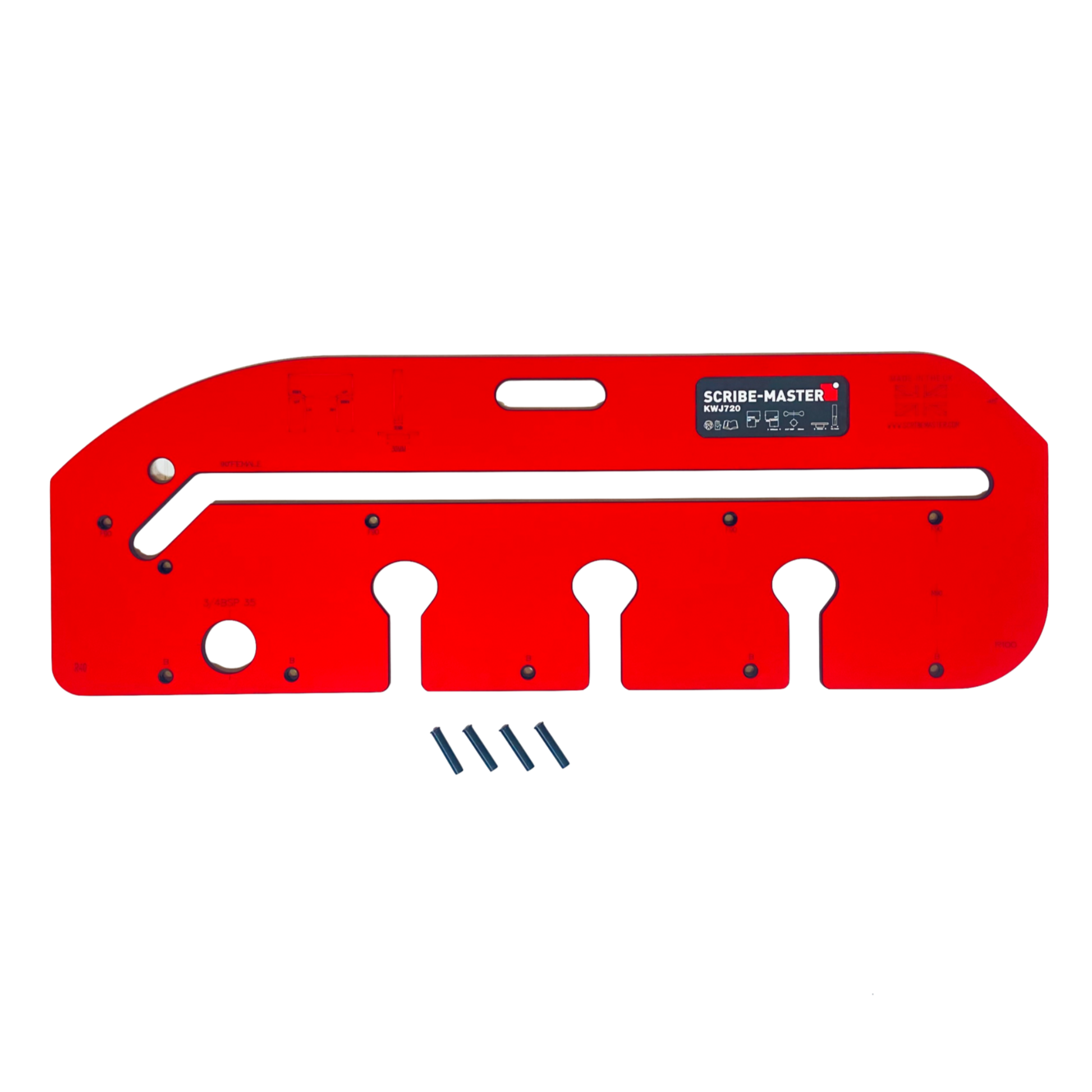

Kitchen Worktop Jig 720 with Sight Line Technology Window

Kitchen Worktop Jig 720 with Sight Line Technology Window

Regular price £119.94 GBP
Regular price £0.00 GBP Sale price £119.94 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:KWJ720

Worktop jig for worktop joints 150mm - 750mm

1. Mark your cut line using your square.
2. Line up the line with the window in the jig.
3. Make your cut.
- No More spacing from the back end of the jig

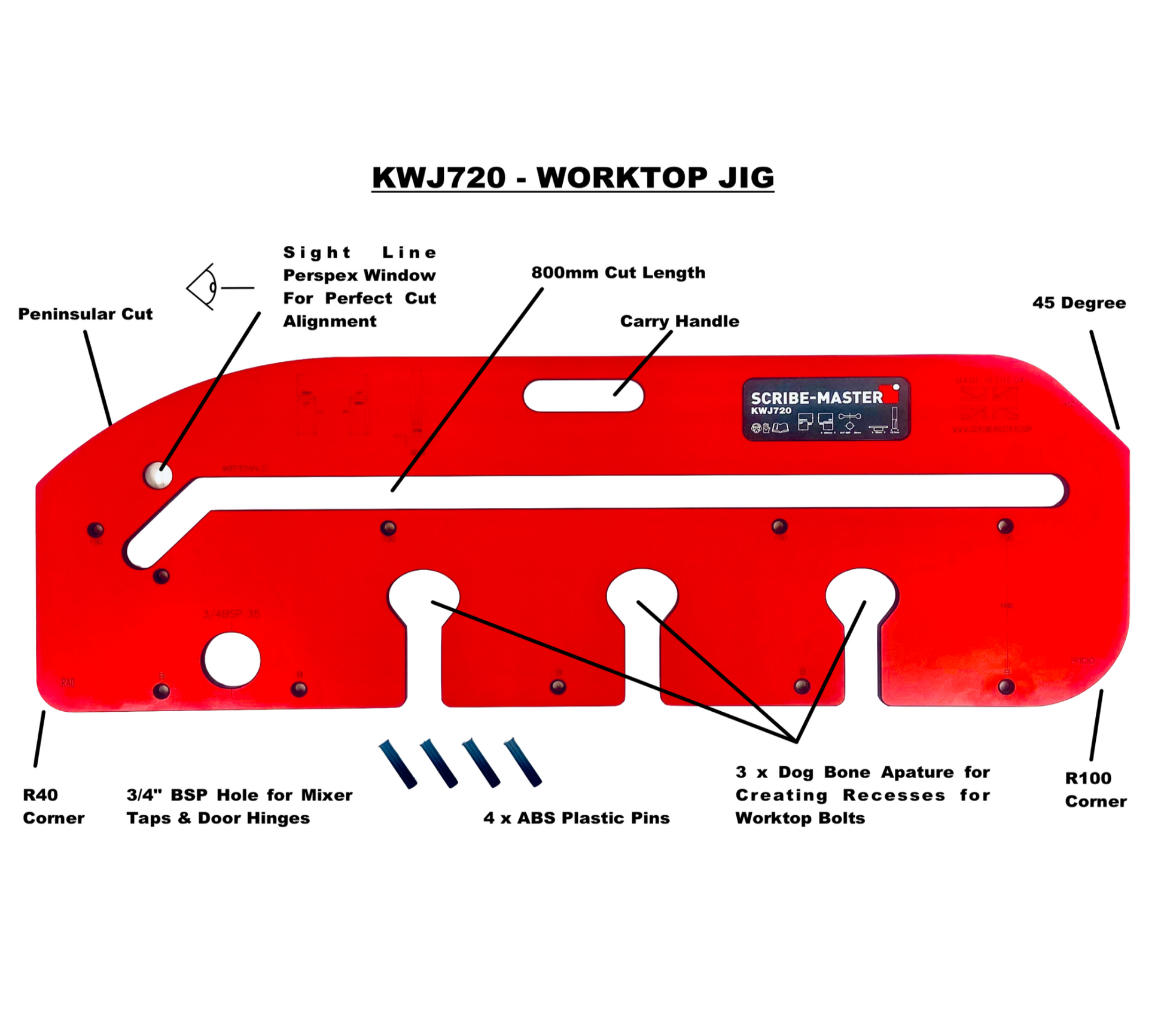

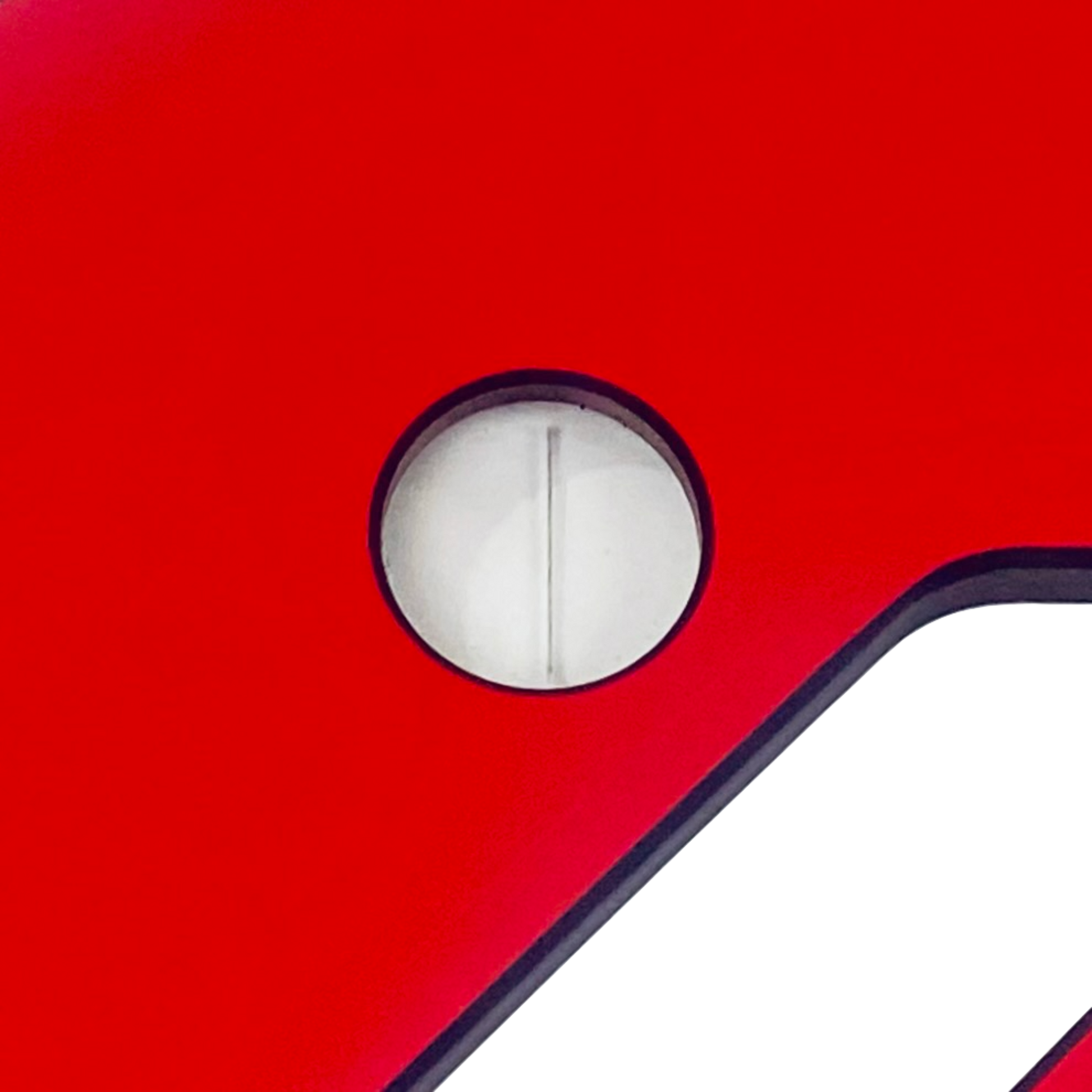

  • FRONT EDGE SETTING All settings are done from the front edge eliminating any discrepancies from scribing or when using non-standard width worktops using Sight Line Technology Window.

  • EASY SET REFERENCE WINDOW Fast set up for any backset, simply align to a measured line.

  • NO SET WORKTOP WIDTH RESTRICTION No need for alignment pins for worktop widths

  • HARD WEARING CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up.

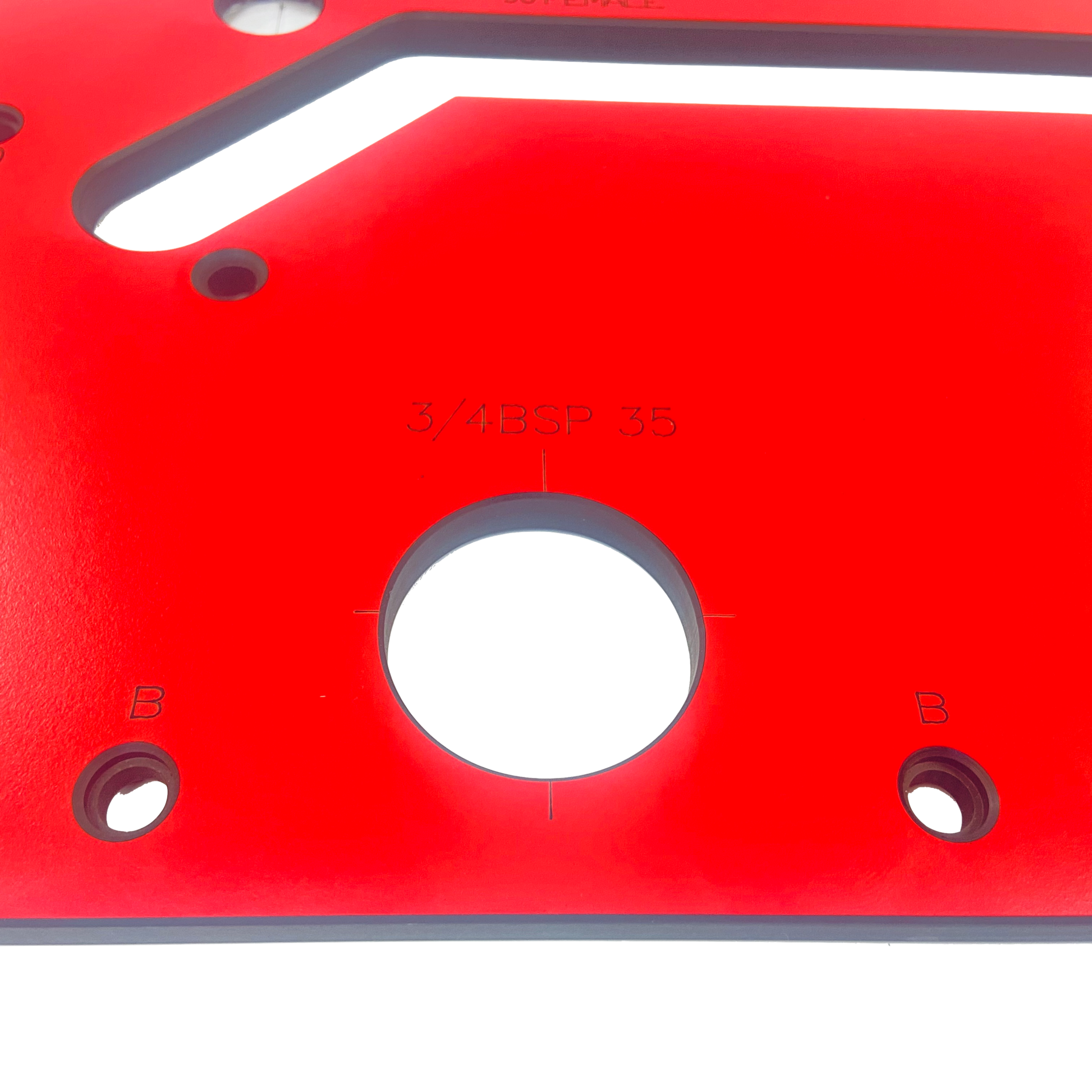

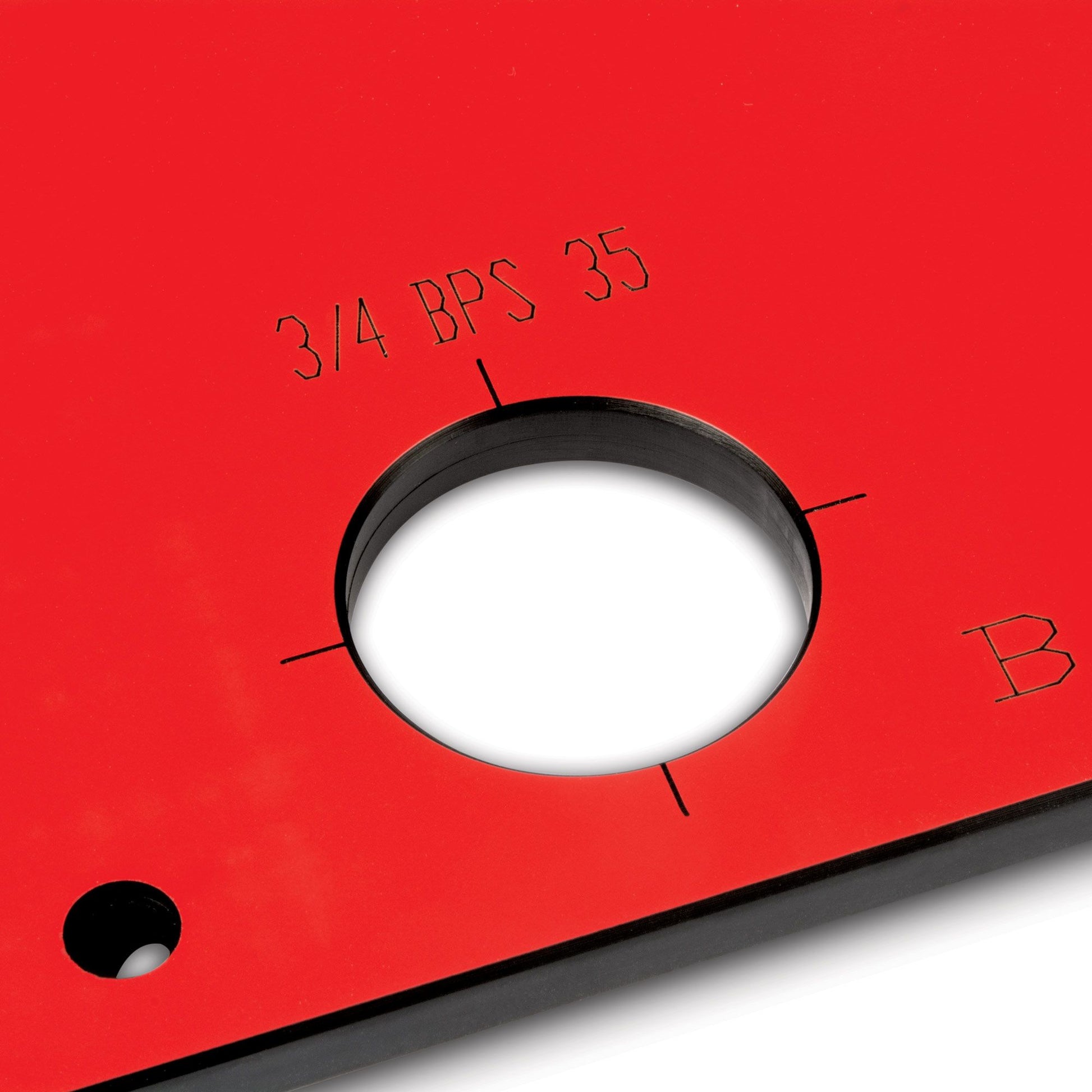

  • 35mm kitchen door hole, 3/4" BSP Tap hole.

  • Cuts Worktop Width Up to 750mm.

  • Cuts up to 40mm thick worktops with or without anti-drip post-formed edge.

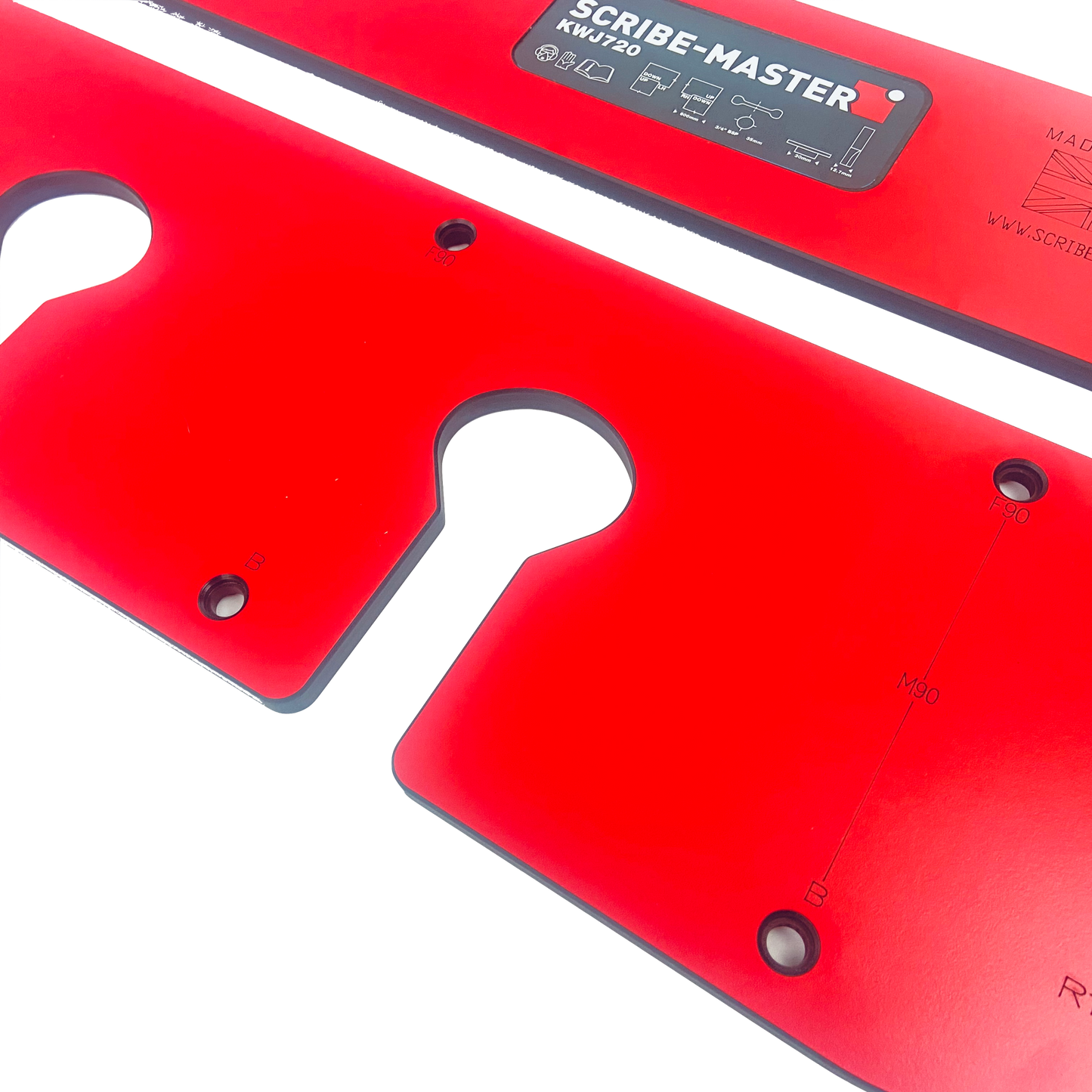

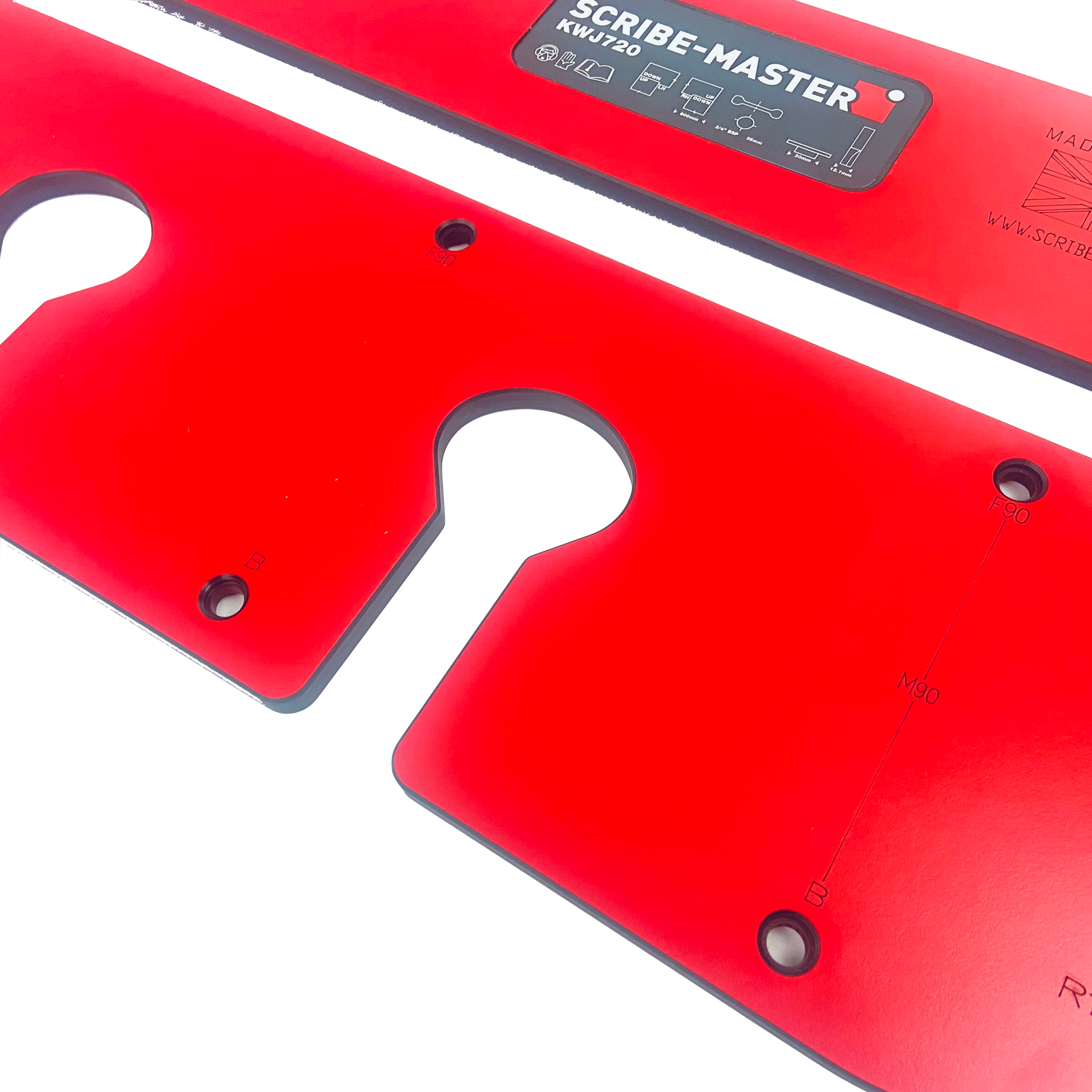

  • Three bolt recess (dog bone style) for 150mm bolts.

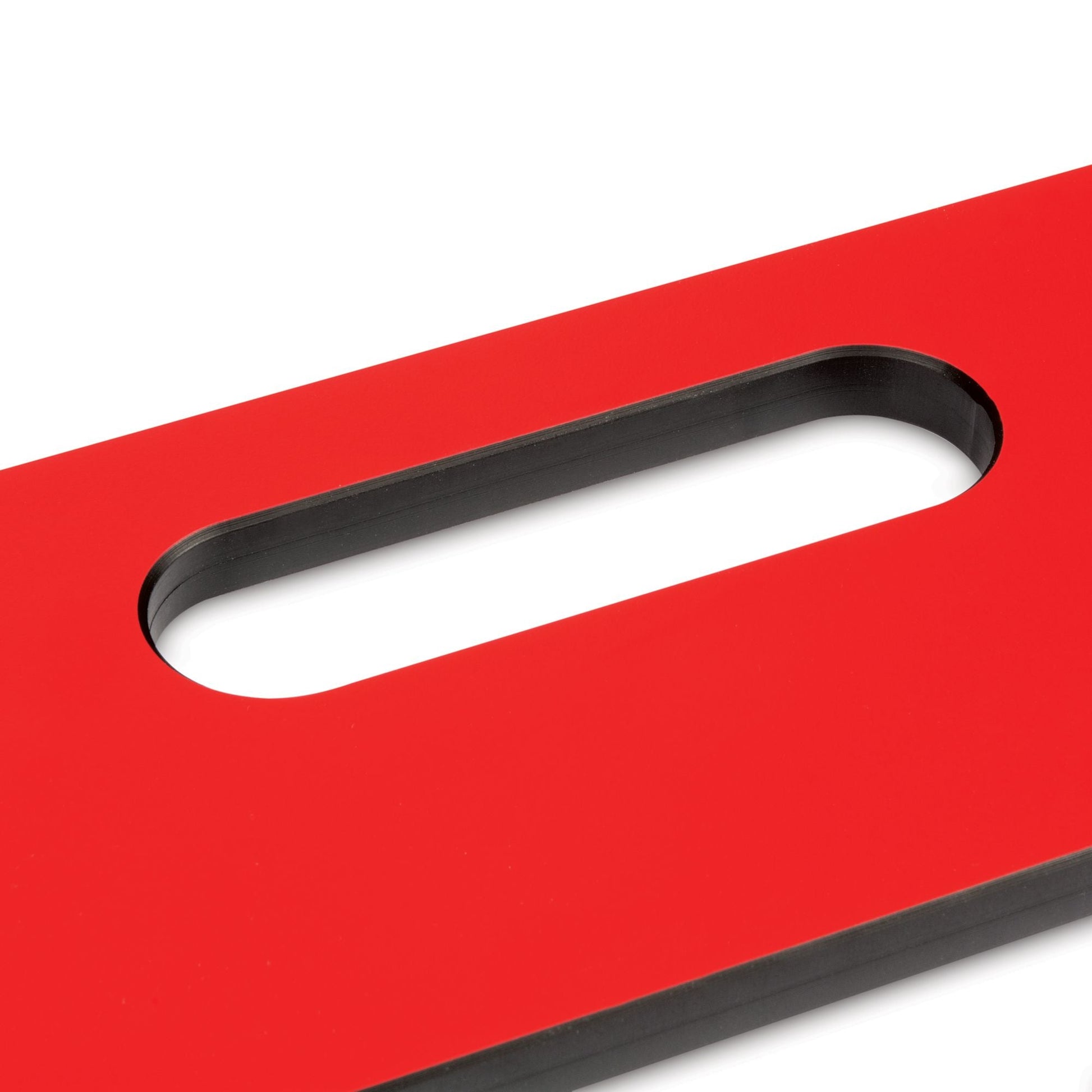

  • Peninsular cut, R40 & R100 corners, 45° angel & carry handle

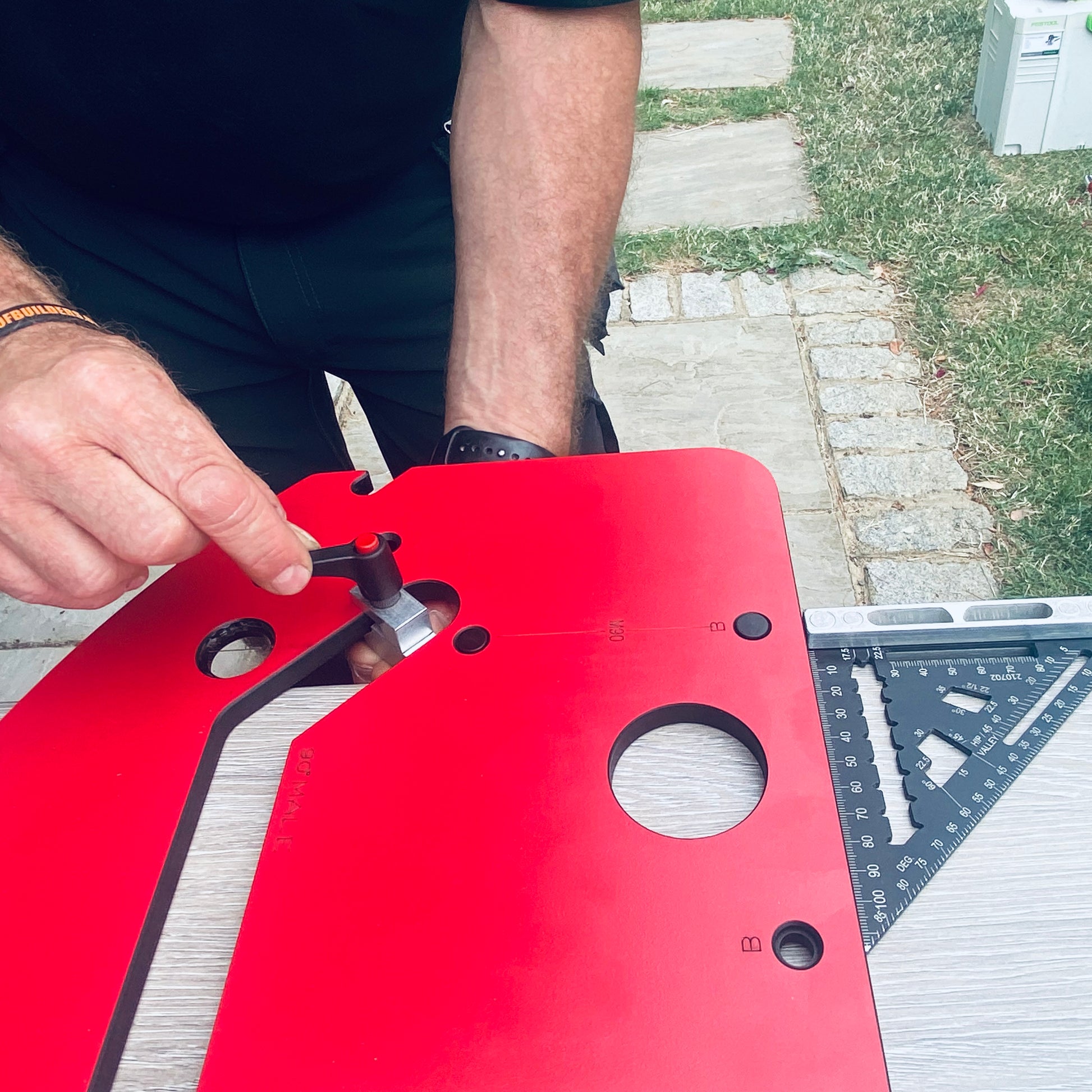

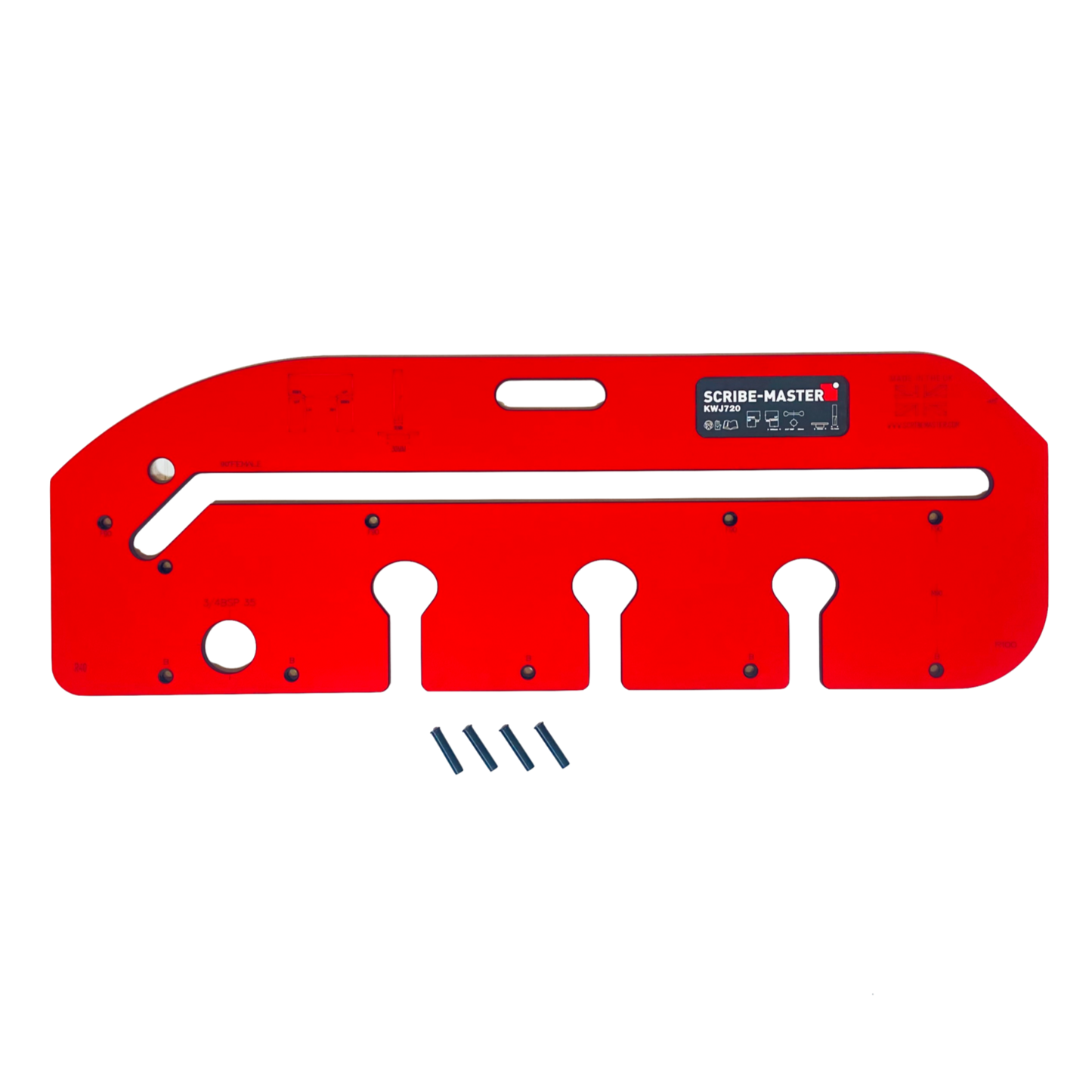

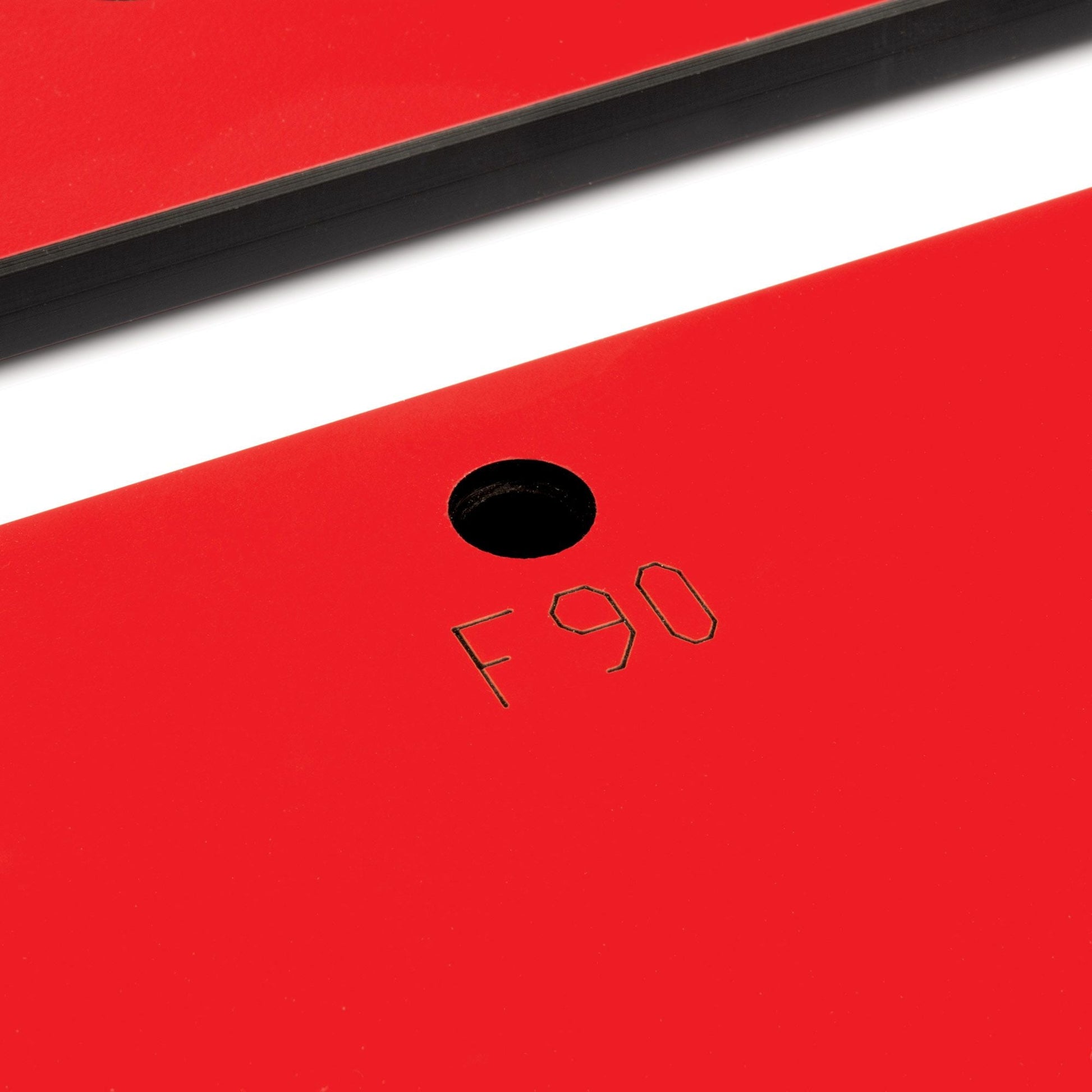

  • 4 x 10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.

  • Pins made from ABS plastic for strength.

  • EASY SET REFERENCE WINDOW Fast set up for any backset, simply align to a measured line

  • FAST JOINTING Cuts a full male and female joint in 15 minutes including setting up

        Specifications

        Length - 985 mm
        Width - 335 mm
        Thickness - 12 mm
        Weight - 4.73 kg
        End Cut - 45 degrees
        Corner Radius - 40 mm
        Corner Radius - 100 mm
        Corner Radius - 400 mm
        Corner Mitre Joint - 45 degrees
        Female cut material width loss (inset)
        variable
        Bolt recesses - 3
        Bolt recess centres - 175 + 175 mm
        Bolt recess width -14 mm
        Guide bush - 30 mm (not included)

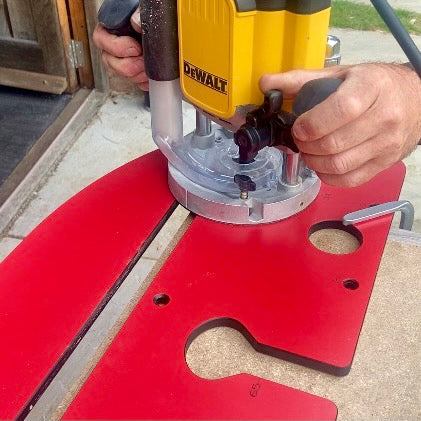

        Plunge router (not included) - 1/2-inch (min. 1300 watts)
        Cutter - 12.7 mm x 50 mm cut (not included)
        Clamps - Two (not included)
