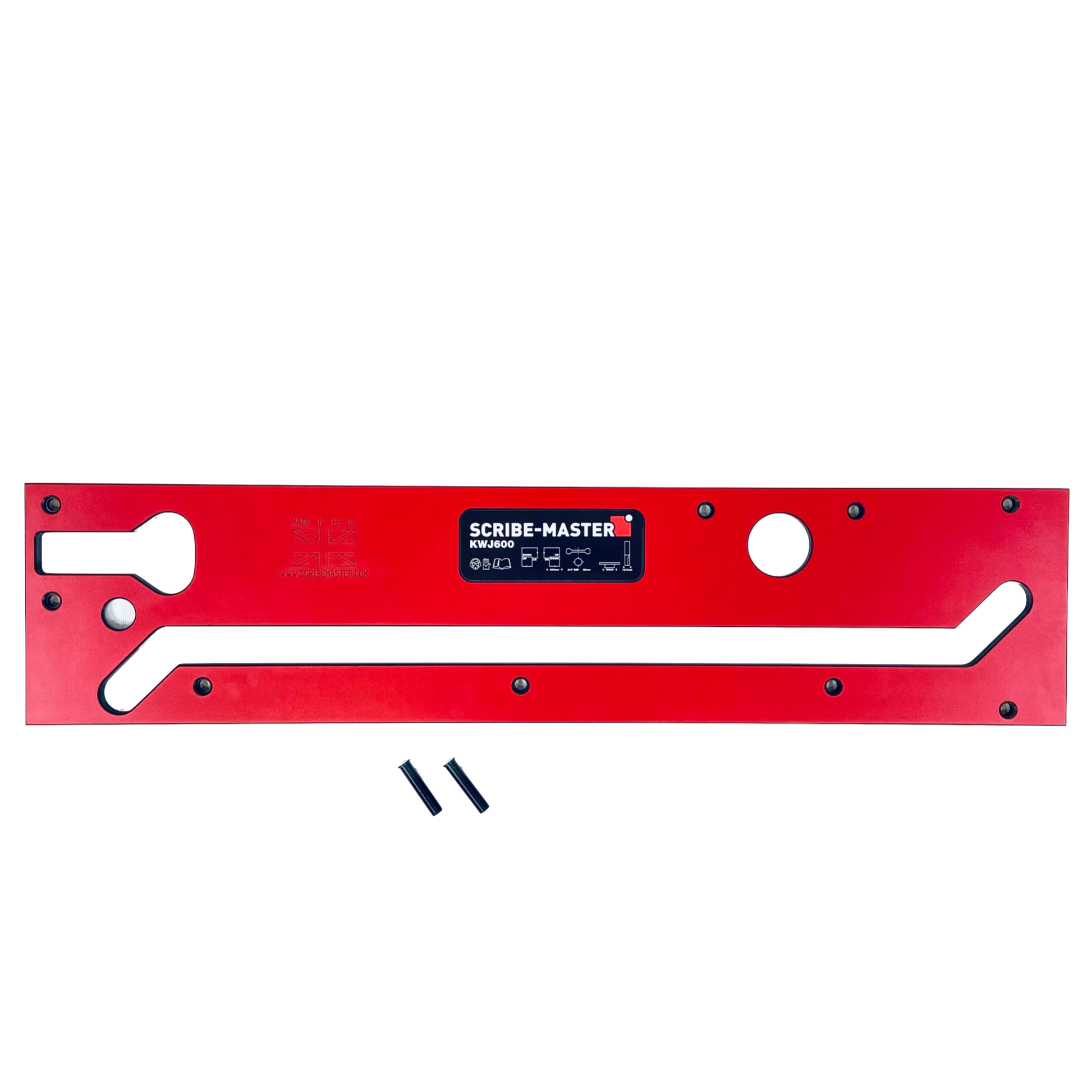

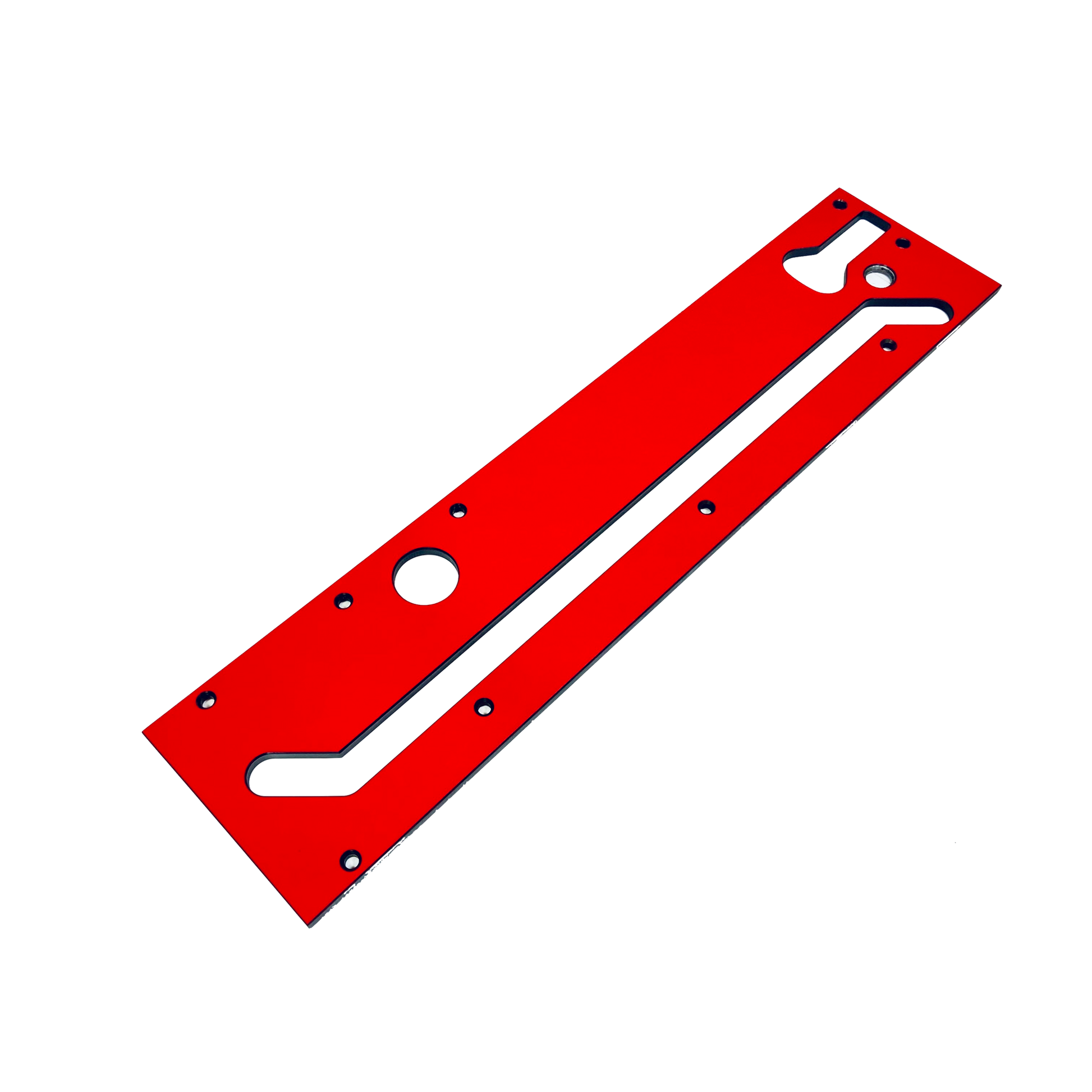

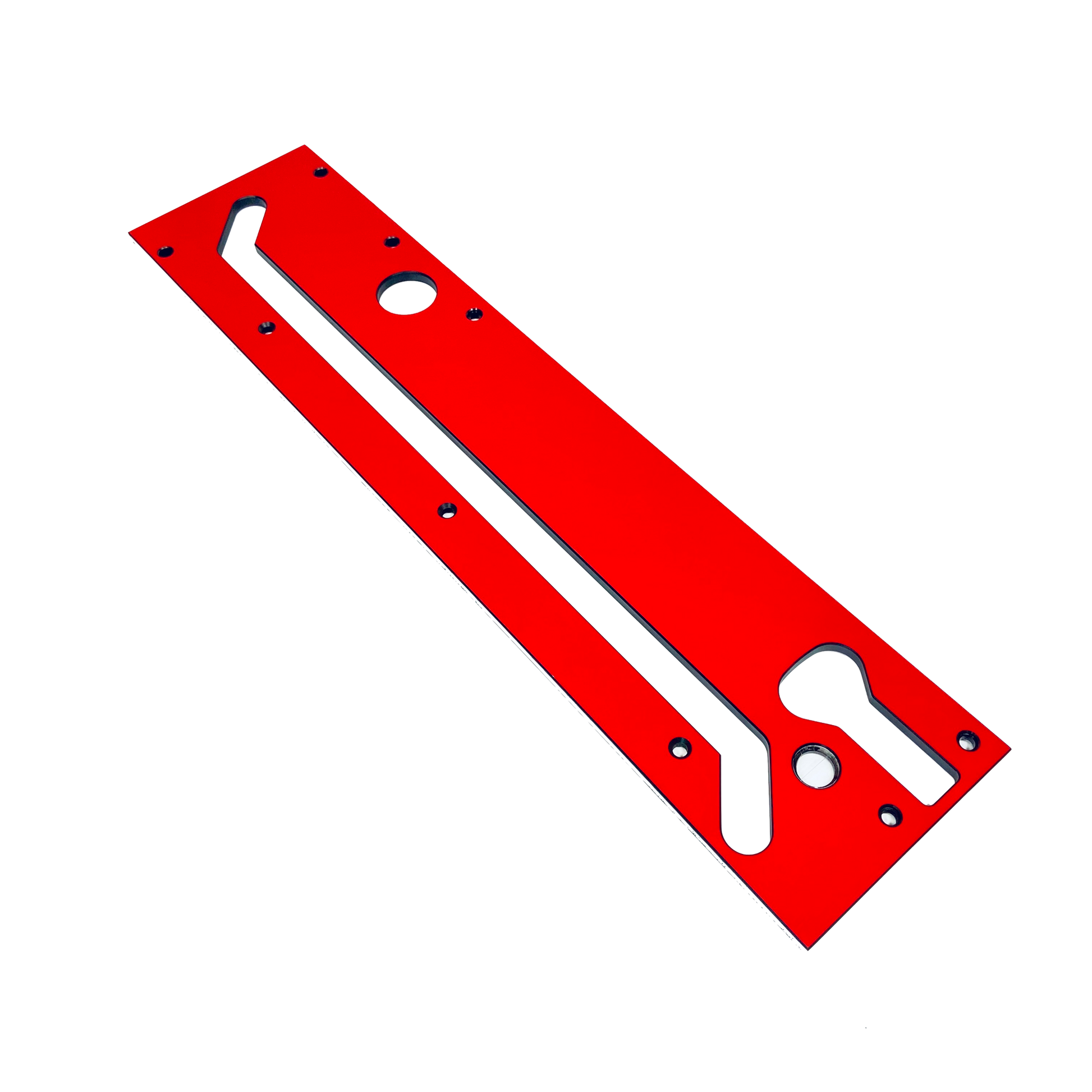

Kitchen Worktop Jig 600 with Sight Line Technology Window

Kitchen Worktop Jig 600 with Sight Line Technology Window

Regular price £89.94 GBP
Regular price £0.00 GBP Sale price £89.94 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

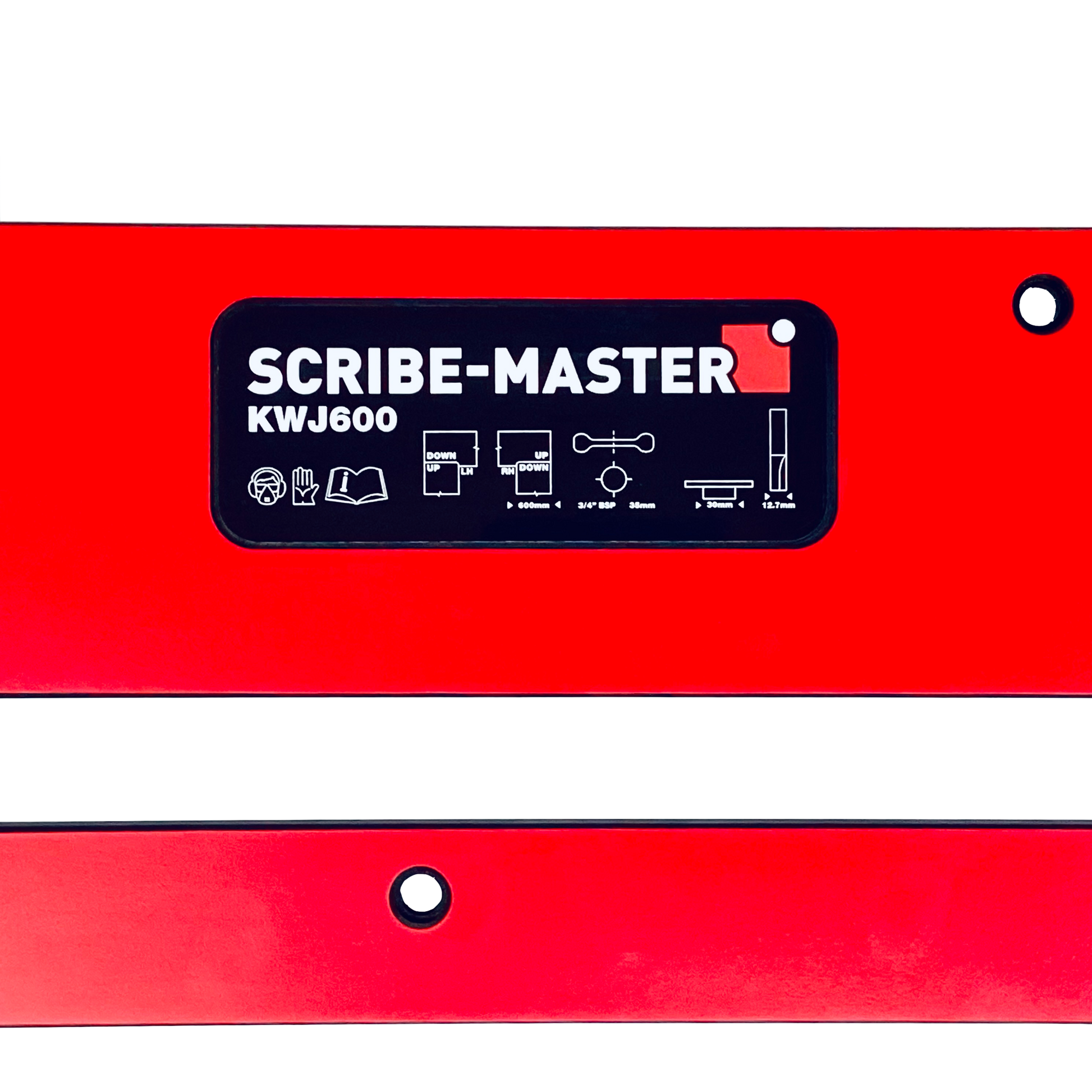

SKU:KWJ600

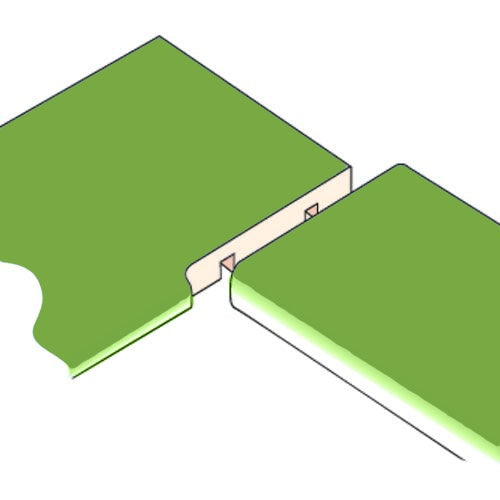

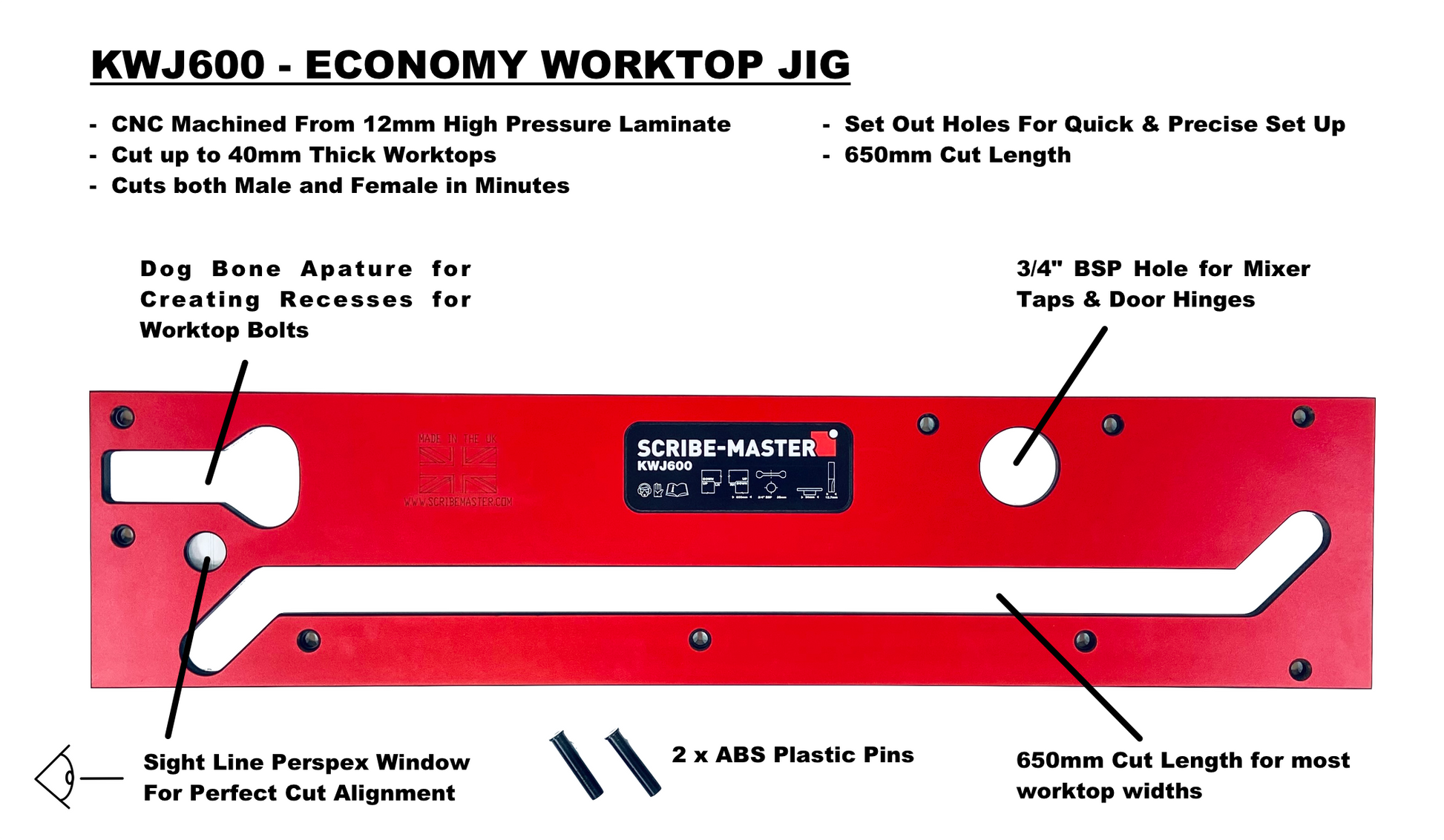

Tradesman economy multi-material jig for worktop joints up to 635mm

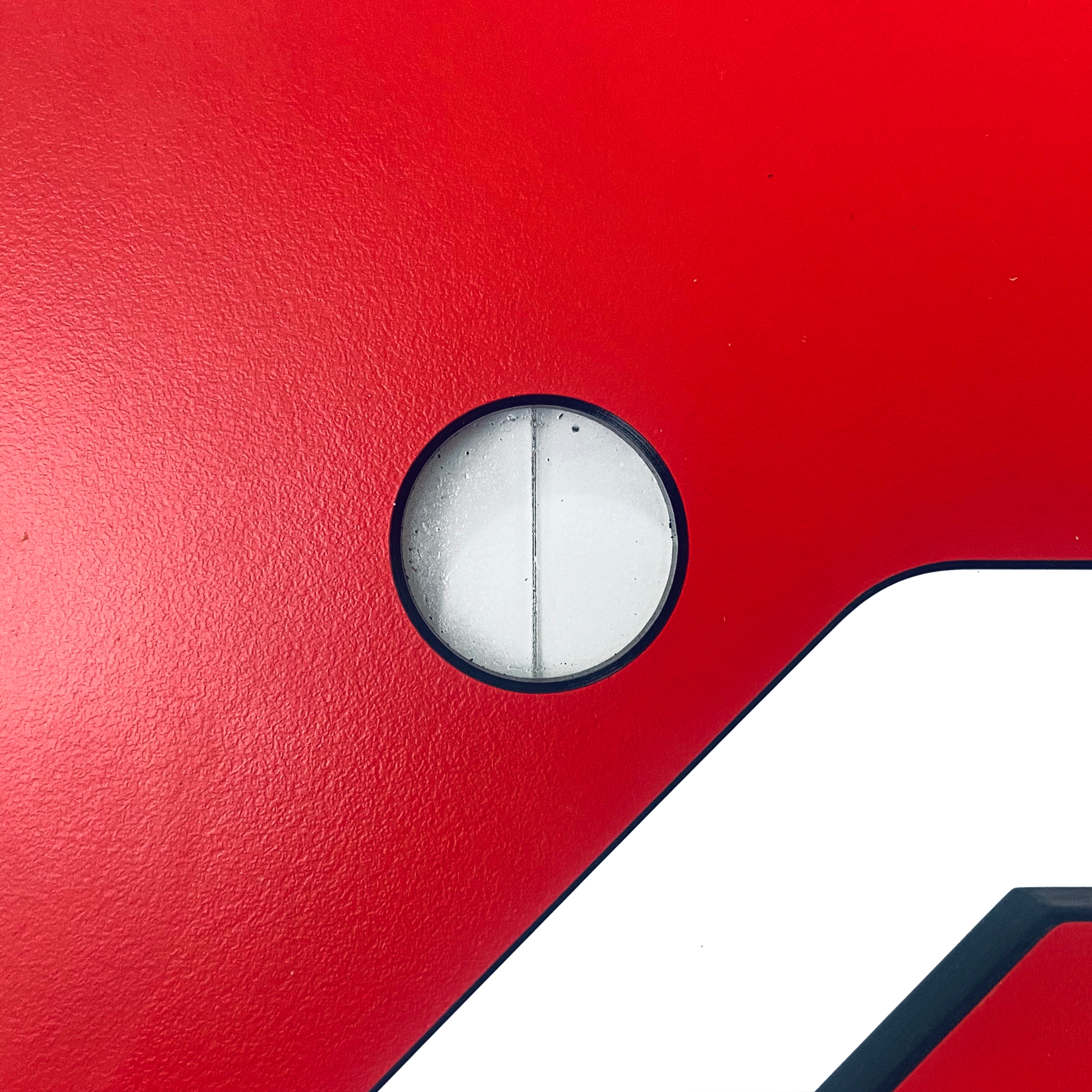

  • Easy 1..2..3 Patented Sight Line Technology. (More Info Click Here)
    • Mark your cut line using your square.
    • Line up the line with the window in the jig.
    • Make your cut.
    • No More spacing from the back end of the jig
    • FRONT EDGE SETTING All settings are done from the front edge eliminating any discrepancies from scribing or when using non-standard width worktops using Sight Line Technology Window.

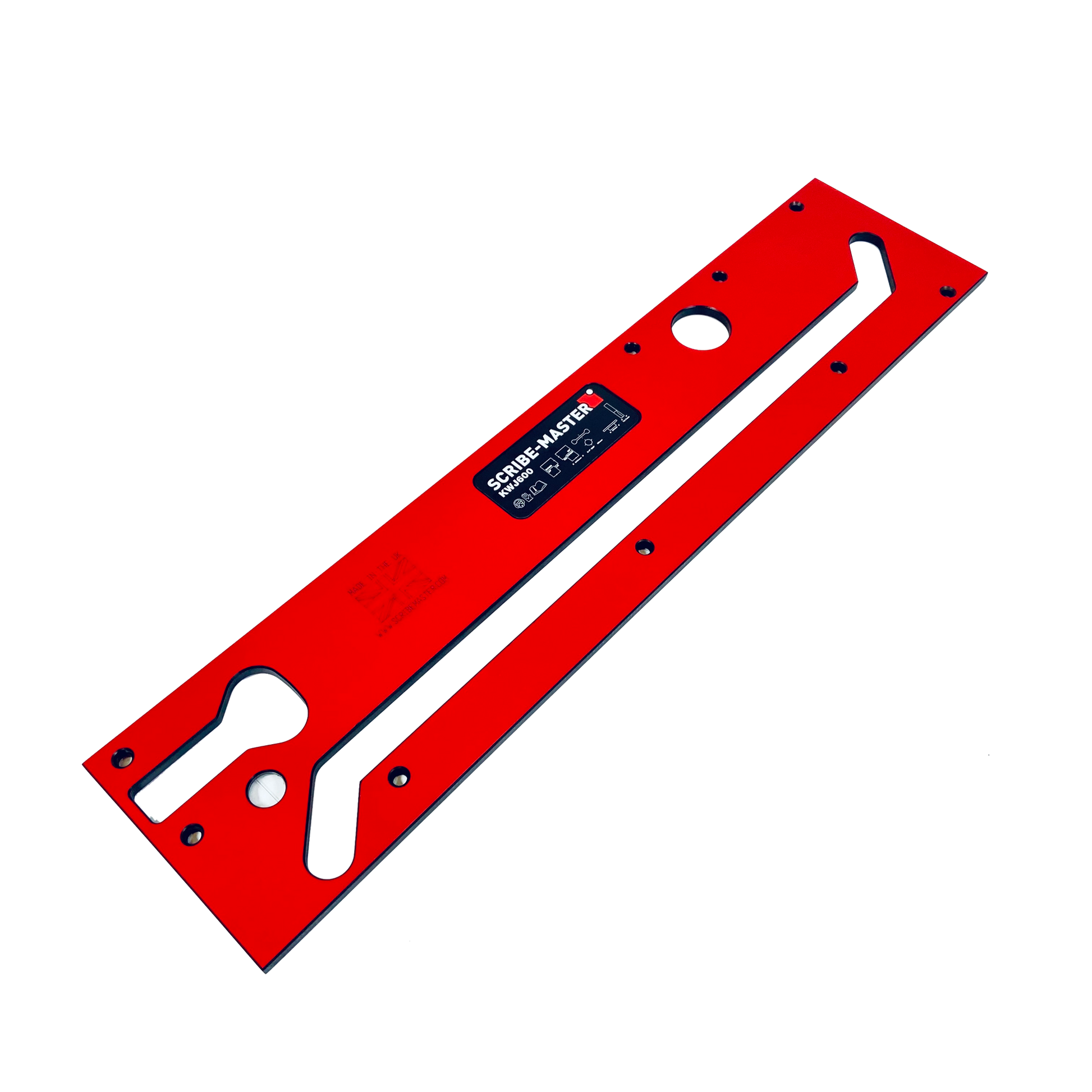

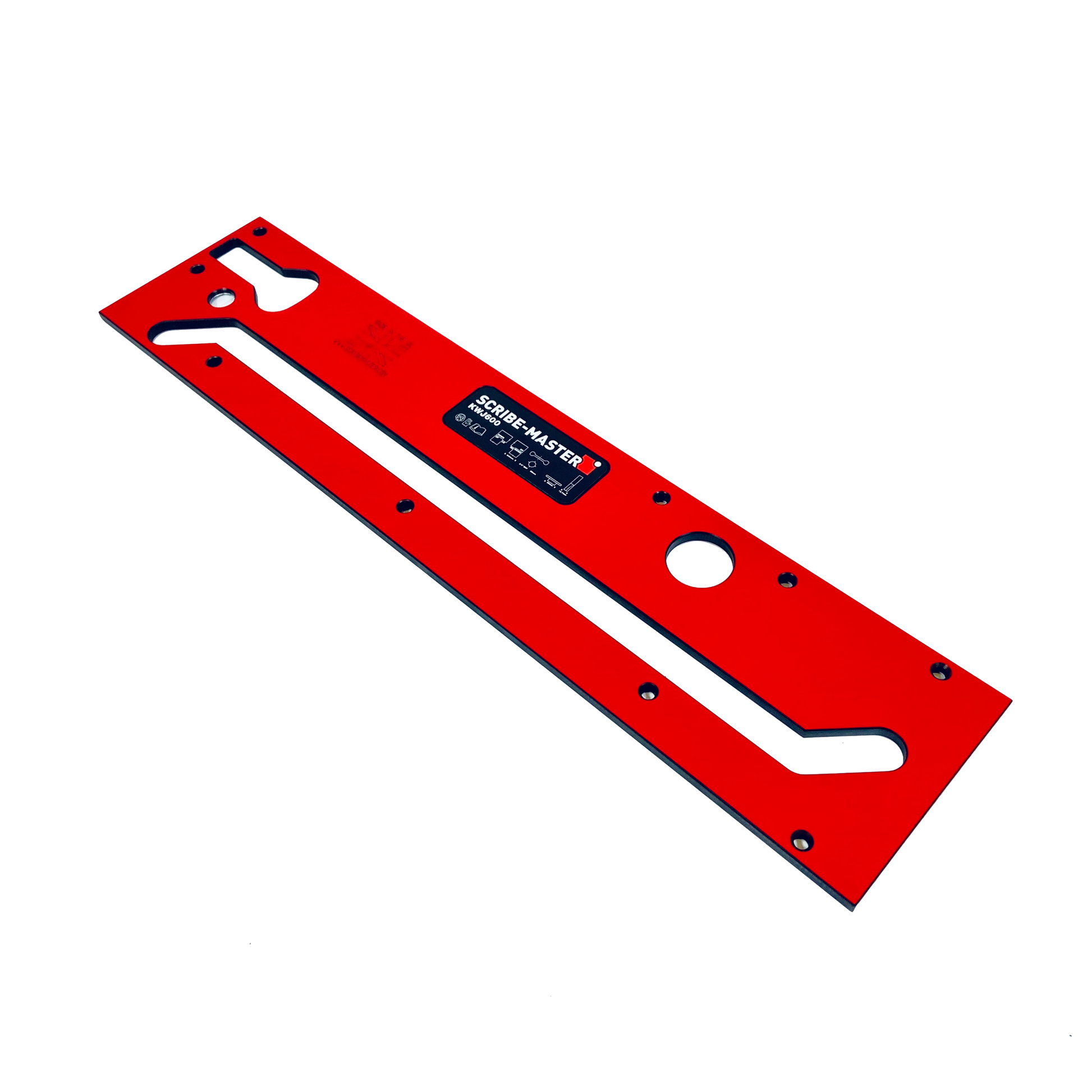

    • Hard wearing CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up.

    • 35mm kitchen door hole, 3/4" BSP Tap hole.

    • Cuts Worktop Width Up to 650mm.

    • Cuts up to 40mm thick worktops with or without anti-drip postformed edge.

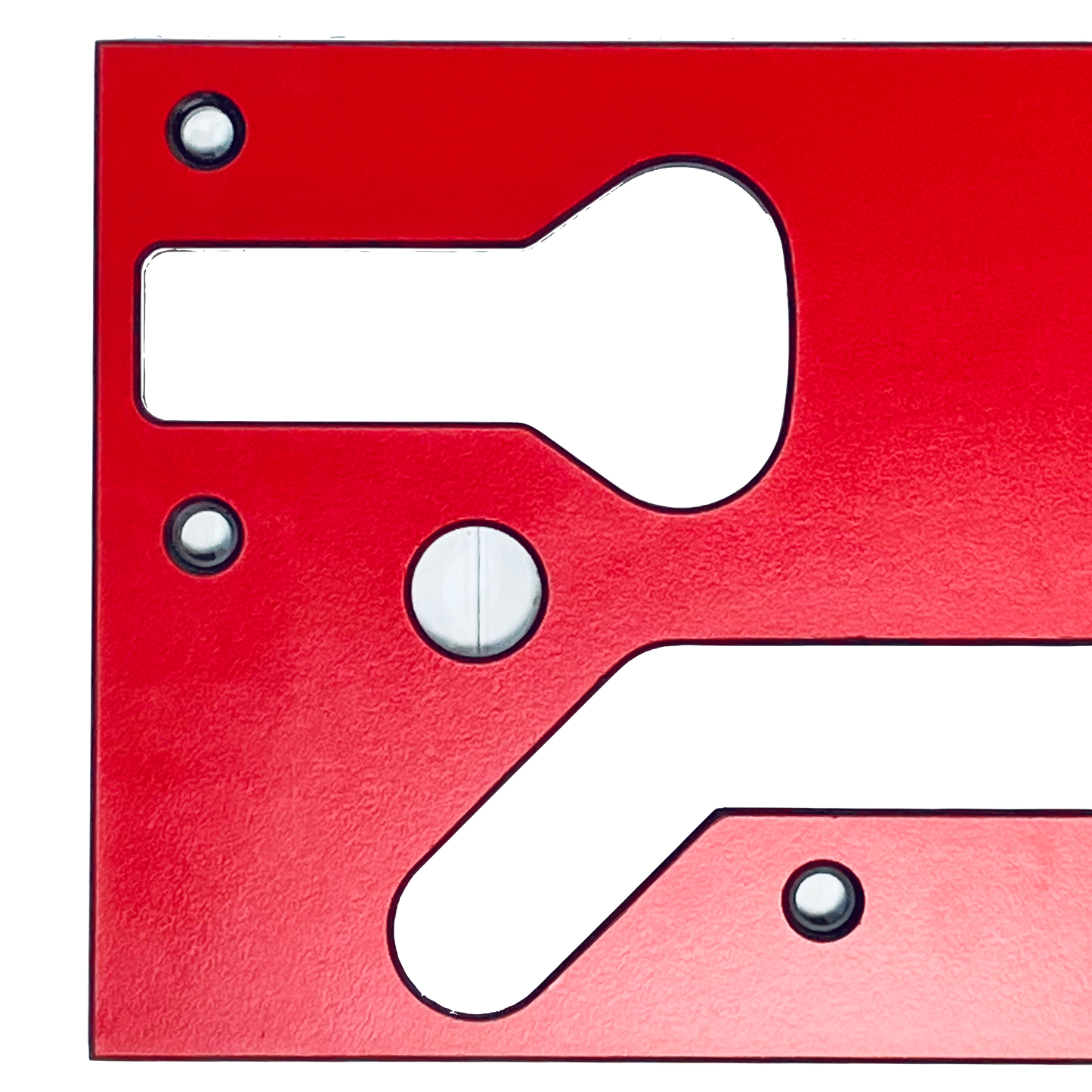

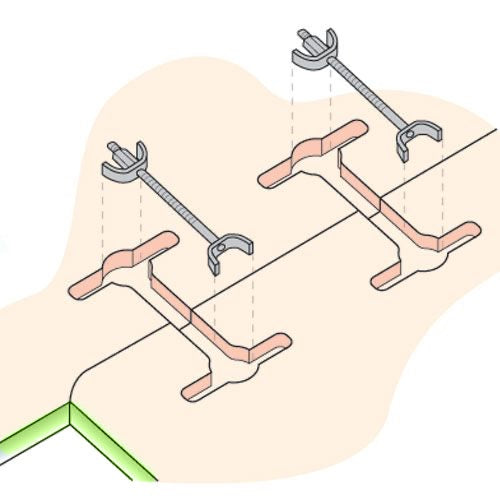

    • One bolt recess (dog bone style) for 150mm bolts.

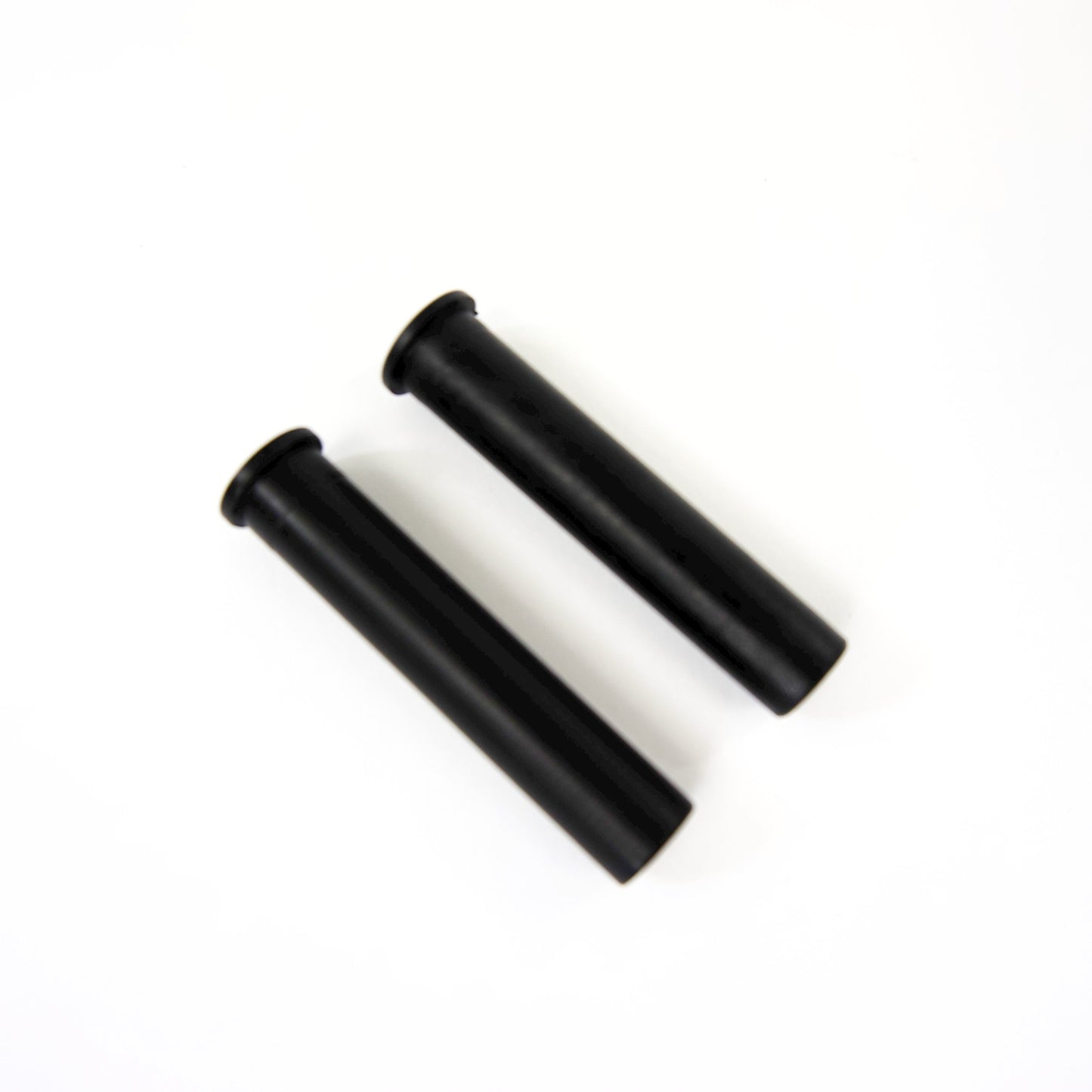

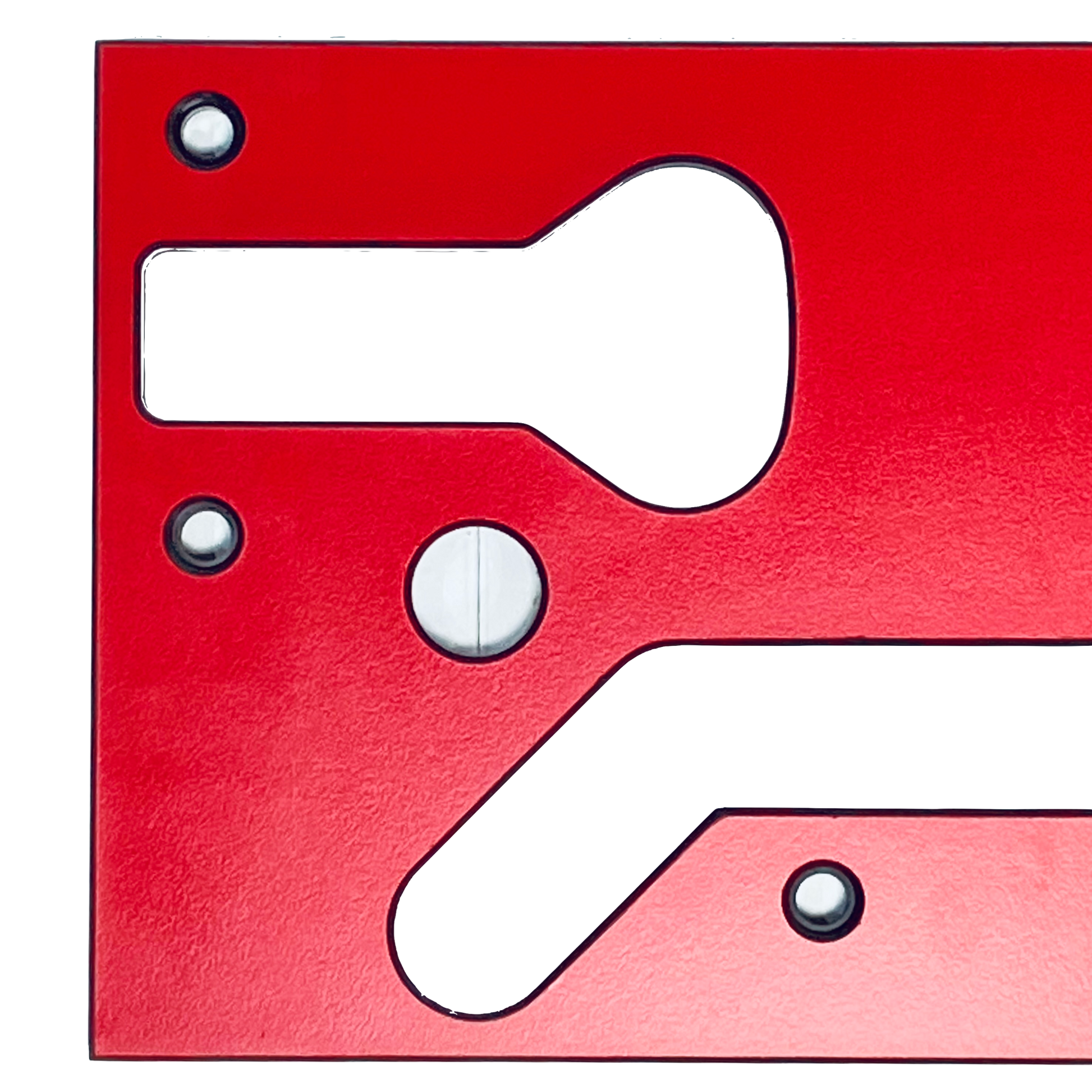

    • 2 x 10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.

    • Pins made from ABS plastic for strength.

    Jig requires:
    • A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.

    • A template guide bush with 30mm outside diameter.

    • A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.

        Specifications

        Length - 845 mm
        Width - 196 mm
        Thickness - 12 mm
        Weight - 2.7 kg

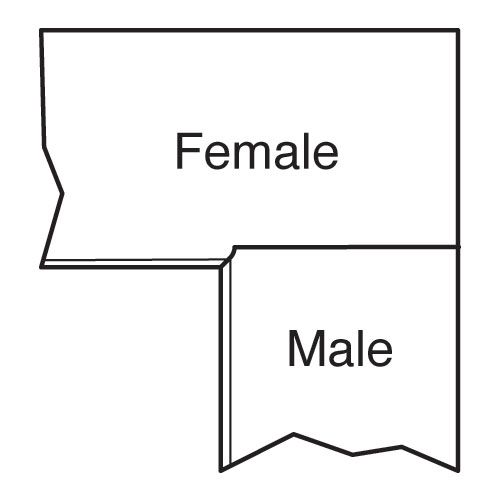

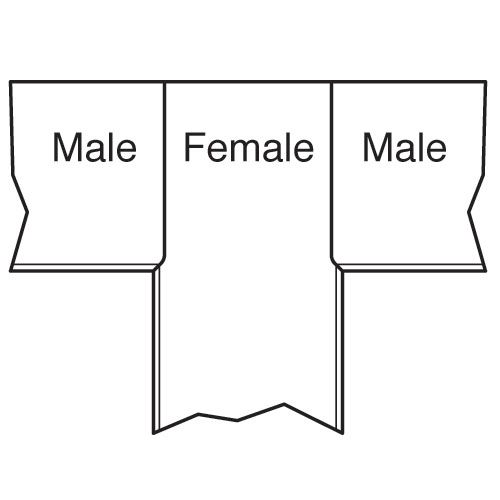

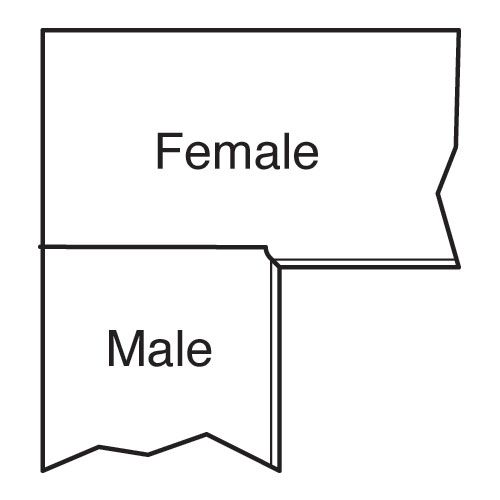

        Female cut material width loss (inset)
        variable
        35mm cupboard door hole
        Bolt recesses - 1
        Bolt recess centre - 175 + 175 mm
        Bolt recess width -14 mm
        Guide bush - 30 mm (not included)
        Plunge router (not included) - 1/2-inch (min. 1300 watts)
        Cutter - 12.7 mm x 50 mm cut (not included)
        Clamps - Two (not included)
