Drainer Groove Plate - Inner Plate Curved & Lightning Fans With Flex-Tech

Drainer Groove Plate - Inner Plate Curved & Lightning Fans With Flex-Tech

Regular price £47.99 GBP
Regular price £0.00 GBP Sale price £47.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:DGCFLF

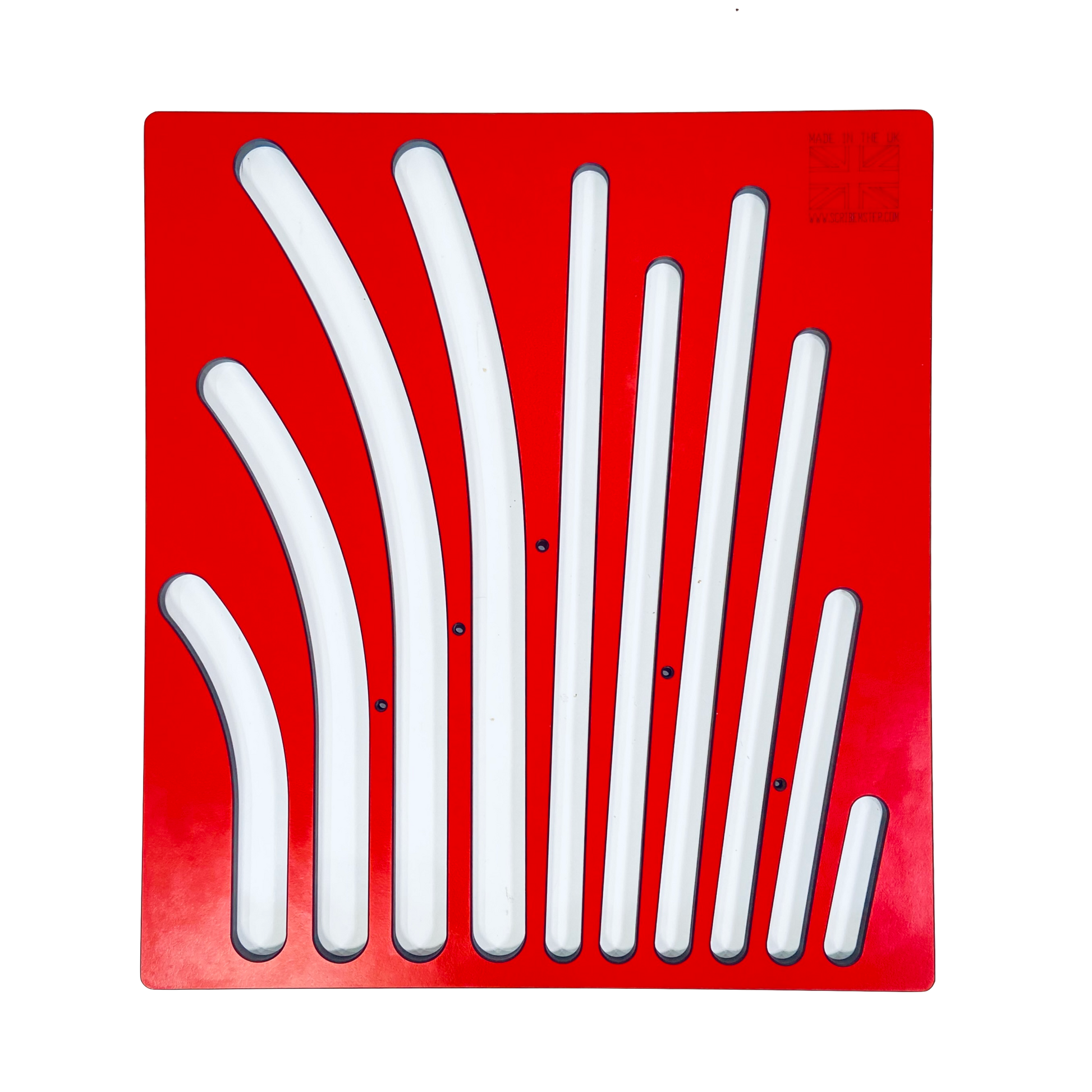

Accessory inner plate template for use with the Drainer Groove Plus & Pro jigs to create a curved & lightning fans drainer grooves in solid timber and solid surface worktops.

  • With Flex-Tech to prevent bowing and improve accuracy. (Click Here For More Info On Flex-Tech)

  • Made from 12mm hardwearing CNC machined Compact Grade High Pressure Laminate.

  • Requires suitable plunge router with 30mm guide bush and R9.5mm cove cutter with long shank.

  • Must be used with the DG PLUS/PRO jig frame to maintain 0.5 degree fall.

Specifications

Pitch - 45 mm to 75 mm
Groove length - 438 mm
Guide bush - 30 mm
Plunge router - 1/2-inch
Cutter - Cove R9.5 mm
Length - 500 mm
Width - 500 mm
Thickness - 12 mm
